Circular Vibrating Screen, Screening Machine, Vibrating Sieve, Vibrating Screen Price, Screen Machine

Product Description

Product Description

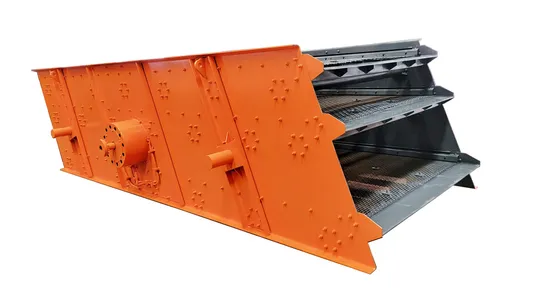

1. The circular vibrating screen is a multilayer and new efficiency vibrating screen with a circular movement locus. Our YK type circular vibrating screen uses an eccentric block vibrator and adjusts the amplitude using a balancing weight.
2. Featuring long screening line, multilayer, multigear and high screening efficiency, it designed specifically for stone pits to screen stones and can also be used for product grading of mine, coal separation plant, mineral separation plant, electric power department and chemical department.
3. The circular vibrating screen can be lubricated using lubricating grease and thin oil. The latest YkX type thin oil circular vibrating screen developed by our company is lubricated using thin oil and has better thermal diffusivity and lubricating property to effectively improve the operating environment and service life of the bearings.
4. The thin oil circular vibrating screen can be refueled by the oil station automatically, can control oil supply, heating and cooling intelligently and equips itself with such devices as high temperature alarm and oil shortage alarm. In case of fault, it can give an alarm promptly to greatly reduce the fault rate, improve the continuous operation ability, save the manpower and cost, and make it easier to start in winter.
5. Featuring structural reliability, strong exciting force, high screening efficiency, low noise, study and durable, easy maintenance and safe, this product is mainly used for grading of gravel, stone and sandstone of mining, coal and building material industries and can be used cooperatively with various crushers.
Detailed Photos

Product Parameters

Type	Screen Size(mm)	Layer	Installation slope	Max Feed Size (mm)	Process Capacity (T/H)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Motor Type	Motor Power	Weight (T)	Dimensions (L×W×H) (mm)
YK1545	1500×4500	1	20°	400	23-180	970	7-8	Y180L-6	15	3.2	4945×2138×912
2YK1545	1500×4500	2	15°	400	23-180	970	7-8	Y180L-6	15	3.9	5141×2245×1210
3YK1545	1500×4500	3	15°	400	23-180	970	7-8	Y180L-6	15	4.8	5219×2245×1630
4YK1545	1500×4500	4	15°	400	23-180	970	7-8	Y180L-6	15	5.7	5441×2245×2086
YK1860	1800×6000	1	18°	400	40-288	970	7-8	Y180L-6	15	4.4	6286×2406×1162
2YK1860	1800×6000	2	18°	400	40-288	970	7-8	Y180L-6	15	5.5	6783×2597×1300
3YK1860	1800×6000	3	18°	400	40-288	970	7-8	Y200L2-6	22	7.7	6864×2608×1670
4YK1860	1800×6000	4	18°	400	40-288	970	7-8	Y200L2-6	22	9.4	7010×2608×2120
YK2160	2100×6000	1	18°	400	70-400	970	7-8	Y180L-6	15	5.5	6242×2908×1170
2YK2160	2100×6000	2	18°	400	70-400	970	7-8	Y200L2-6	22	6.6	6732×2953×1340
3YK2160	2100×6000	3	18°	400	70-400	970	7-8	Y250M-6	37	8.8	6888×2953×1945
4YK2160	2100×6000	4	20°	400	70-400	970	7-8	Y280M-6	45	11	7083×2953×2200
YK2460	2400×6000	1	20°	400	128-520	970	7-8	Y200L2-6	22	4	6468×3545×1170
2YK2460	2400×6000	2	20°	400	128-520	970	7-8	Y225M-6	30	7	6753×3300×1320
3YK2460	2400×6000	3	20°	400	128-520	970	7-8	Y250M-6	37	8.6	6932×3300×1816
4YK2460	2400×6000	4	20°	400	128-520	970	7-8	Y280M-6	45	10	7117×3300×2320
2YK2470	2400×7000	2	20°	400	160-600	970	7-8	Y250M-6	37	6.8	7776×3300×1320
3YK2470	2400×7000	3	20°	400	160-600	970	7-8	Y280M-6	45	8.5	7958×3300×1820
4YK2470	2400×7000	4	20°	400	160-600	970	7-8	Y280M-6	45	12.5	8140×3300×2320
2YK3072	3000×7200	2	20°	400	180-670	970	7-8	Y200L2-6	22*2	13.7	8146×3913×1670
3YK3072	3000×7200	3	20°	400	180-670	970	7-8	Y225M-6	30*2	14.2	8307×3913×2214

Product parts
Usage Scenarios
Usage Process



Company Profile
Certifications

---
