at Command Quadband GPRS Modem (DTU) with dB9 RS232/RS485 for Substation Monitoring

Product Description

Product Description

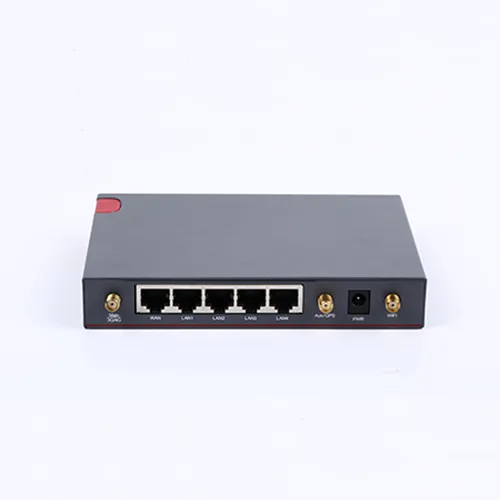

H50series at Command Quadband GPRS Modem Designed with industrial grade, with TCP/IP stack, supports transparent data transmission, AT Command, RS232/485, remote configuration and control, with embedded Operation System, such as LINUX and WINDOWS OS, can be used as a modem for sending SMS, always online function makes data communication in real-time, etc. It has been used for data communication/acquisition, remote control and minotring, M2M appliation, etc.
Product Parameters Features and Benefits
Design for Industrial Application
High-powered industrial cellular module
High-powered industrial 32bits CPU
Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
Housing: Iron, providing IP30 protection.
Power range: DC 7~32V
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
Ethernet port: 1.5KV magnetic isolation protection
RS232/RS485/RS422 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: Reverse-voltage and overvoltage protection
Antenna port: Lightning protection(optional)
Standard and Convenience
Support standard RS232(or RS485/RS422), Ethernet and WiFi port that can connect to serial, Ethernet and WiFi devices directly
Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface(WEB or CLI)
High-performance
Support double link backup between WCDMA and WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
Support port mirror function(optional)
Support WiFi AP, WiFi AP client, Adhoc, Repeater, Repeater Bridge and WDS(optional)
Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support APN/VPDN
Support wireless video monitoring and dynamic picture transfer
Support DHCP server and client, DDNS, firewall, NAT, DMZ host, QoS, ttraff, etc.
Support multi protocols, such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
Support VLANs, MAC Address clone, PPPoE Server, Schedule Reboot, etc.
Specification:

Cellular
4G(FDD LTE/TDD LTE)	AU: B1/B3/B5/B7/B8/B28, B40 EU: B1/B3/B7/B8/B20/B28/B31, B38/B40 US: B2/B4/B5/B13/B17/B25, B41 JP: B1/B3/B8/B9/B18/B19/B21/B28, B41 CN: B1/B3, B38/B39/B40/B41
3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+)	850/900/1900/2100 MHz 850/1900/2100 MHz 900/2100 MHz
2G(EDGE/GPRS/CDMA/EVDO)	850/900/1800/1900 MHz
Antenna Interface
Number of ports	1 or 2 (MAIN + AUX/WiFi/GPS)
SIM	1 or 2(3 V & 1.8 V)
Ethernet Interface
Number of ports	5 x 10/100 Mbps, 5 LAN or 4 LAN + 1 WAN
Magnet isolation protection	1.5 KV
Serial Interface
Number of ports	1 x RS-232 or 1 x RS-485
Baud rate	300bps to 230400bps
Software
VPN tunnel	PPTP/L2TP, IPsec, GRE, OpenVPN
Firewall	DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name)
Management	Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional
Serial port	Transparent, TCP Client/Server, UDP, Modbus RTU
Others
Reset button	1 x RST
LED indicators	2 x NET, 4 x LAN, 1 x WAN, 1 x WLAN
Power	5 to 32 V DC(standard 12V/1.5A)
Power consumption	Idle: 160 mA@12 V Data link: 220 mA (peak) @12 V
Housing & Weight	Metal(IP34), 500 g
Dimension	150 x 102 x 25.5 mm
Installation	Desktop, wall mounting and DIN rail mounting
Certification	CE, RoHs, FCC
