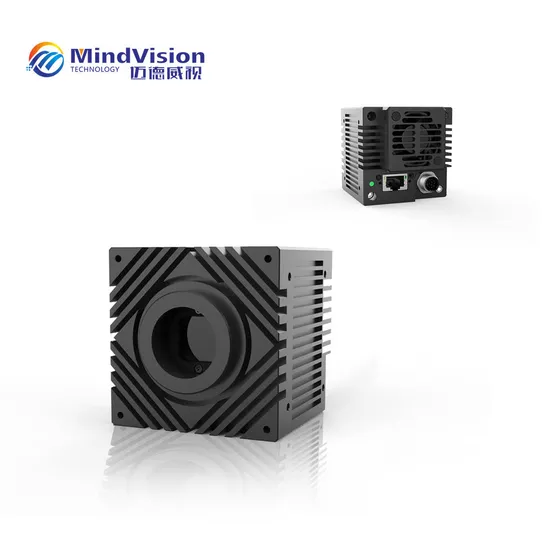

Mindvision High Speed 10gige Industrial Camera Imx421 408fps 2.8 Mpc-Mouth 2/3 CMOS Area Scan Machine Vision Digital Camera

Product Description

Model	MV-XG280GC			MV-XG280GM
Camera Type	Color			Mono
Sensor	2/3'' CMOS
Resolution @ Frame Rate	1936X1464@408FPS
Pixel size	4.5umx4.5um
Sensitivity	1677mV 1/30s
Time of exposure	0.0015~1572.9ms
Maximum Gain (multiple)	125
Video Output Format	Bayer 8/12bit			Mono 8/12bit
GPIO	2 input and 2 output, 1 way configurable input and output, supports trigger and strobe sync modes
Lens Interface	C-Mount
Power supply	12V
Power	<12W
External Dimension	64X64X61.7(mm) (Lens base and rear shell interface are not included)
Weight	<550g
Operating System	WINXP, WIN7/8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system
Drive program	DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Programming language	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Certification	Rhos,CE

10 Gige Area Scan Camera Model List

Product Model

Pixel

Resolution

Frame Rate(Fps)

Sensor Size

Pixel Size

Min Exposure

MV-XG/XGC51GC/M

0.5MP

816*624

1594

1/1.7''

9.0um

0.0008ms

MV-XG/XGC170GC/M

1.7MP

1600*1100

650

1.1''

9.0um

0.0011ms

MV-XG/XGC280GC/M

2.8MP

1936*1464

408

2/3''

4.5um

0.0015ms

MV-XG/XGC402GC/M

4MP

2048*2048

172

1''

5.5um

0.0026ms

MV-XG/XGC503GC/M

5MP

2592*2160

120

1/2''

2.5um

0.003ms

MV-XG/XGC903GC/M

9MP

4208*2160

120

2/3''

2.5um

0.003ms

MV-XG/XGC1205GC/M

12MP

4096*3072

90

1''

3.2um

0.003ms

MV-XG/XGC1803GC/M

18MP

4512*4096

63

1''

2.5um

0.003ms

MV-XG2500GC/M

25MP

5120*5120

42

1.1''

2.5um

0.004ms

MV-XG2600C

26MP

6240*4168

45

1.8''

3.76um

0.005ms

MV-XG/XGC3100GC/M

31MP

6480*4860

35

27.9mm

3.45um

0.0056ms

MV-XG/XGC4701GC/M

47MP

8240*5628

24

1.4''

2.315um

0.0072ms

MV-XG/XGC6500GC/M

65MP

9344*7000

15.5

29.9*22.4mm

3.2um

0.015ms

MV-XGC1606GC/M

16MP

4096*4096

45.25

4/3''

3.5um

0.0053ms

MV-XGC2500GC/M

25MP

5120*5120

41.75

1.1''

2.5um

0.0046ms

MV-XGC507GC/M

5MP

2448*2048

164

2/3''

3.4um

0.003ms

MV-XGC1207GC/M

12MP

4096*3072

100

1.1''

3.4um

0.003ms

MV-XGC2501GC/M

25MP

5120*5120

42

1.3''

2.7um

0.0053ms

MV-XGC6400GC/M

64MP

8192*8192

18.75

4/3''

1.75um

0.0053ms

MV-XGC10000GC/M

100MP

11276*9200

11.6

36.1*29.4mm

3.2um

0.001ms

If you have more requirement, click to contact us Industrial Camera Interface Type About MindVision MindVision is a professional industrial camera manufacturer. We have been focusing on the R&D, production and manufacturing of industrial cameras, and we are the first company in China to realize the mass production of Gigabit industrial cameras. We founded in Shenzhen, have product centers and R&D bases in Changsha, Hunan Province and Wuxi, Jiangsu Province, with a total of nearly 300 employees. MindVision product line is complete, including area scan cameras, line scan cameras, thermal imaging cameras, smart cameras, 3D cameras, high speed camera etc., and also provides customized services. Raw material warehouse Production Line 4 Assembling the camera Aging Test Dust removal testing Space is limited, click to see more factory views Why choose MindVision? 1. Own factory, 10+ production lines, timely delivery; 2. Complete product line, 1000+ product models, meeting various needs; 3.Strong R&D capabilities,100+ patent certificates 4. Self-developed SDK, support secondary development; 5. Support ODM customization to meet your special needs; 6. 1V1 after-sales service and answer various questions in a timely manner; ODM Customization Exhibition Exhibitions in Germany At the Munich Exhibition in Germany, MindVision gained the attention of many foreign customers with advanced
product technology, excellent quality and ultra-high cost performance. Industry Exhibition The exhibition received an enthusiastic response and achieved remarkable results, it also strengthened
MindVision development concept with cameras as the core, making China Vision world-renowned. More and More Companies Choose MindVision

---
