Basic Info.
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid, Semi-Liquid
Application Area
Daily Chemical
Certification
CE, ISO, SGS
Stirring Type
Frame Mixing
Heating
Electric or Steam
Material
Stainless Steel 304 and 316L
Homogenizer Speed
0-3000rpm
Volume Available
10-1000L
Keyword
Homogenizer Mixer
Machine Name
Vacuum Mixer Homogenizer
Operating type
Continuous Operating
Transport Package
Ply-Wood
Production Capacity
30set/Mon
Product Description
China good quality price high speed high shear hair color cosmetic vacuum cream mixing making machine Description: 1, Vacuum Cosmetic Cream vacuum homogenizer mixer machine the material contacted part is made by SS316L, inside and outside of the equipment are with mirror polishing and get to GMP standard. complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect.
2, Polytetrafluoroethylene scraping board cater to body of blending groove and scrape out viscosity material on tank wall.
3, Homogenizer is installed on tank bottom to increase motor power more thoroughly and strongly. During few production, It can exert homogenizing effect fully.
4. The homogenizer is frequency conversion timing control and can setting the homogenizing time, it adopts the most advanced German-technology, it can get an ideal emulsifying effect. the speed of high emulsification is 0-3000r/min, you can choice highest rotate speed up to 4500 r/min5,Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick product; tank body and pipe surface mirror polishing 300MESH (sanitation grade) accords with Daily Chemical and GMP regulation.
6. Finished products can be discharged by vacuum or tilt the tank, or by pump. Technical Parameters:
Model | Working capacity | Stir motor/speed | Homogenizer motor/speed | Vacuum pump/Kw | Water pot volume | Oil pot volume | Oil/water pot stir speed |
RHJ-10L | 10L | 0.37Kw | 0-63RPM | 1.1Kw | 0-3000RPM | 0.75 | 7L | 4L | 960RPM |
RHJ-20L | 20L | 0.75Kw | 0-63RPM | 1.5Kw | 0-3000RPM | 0.75 | 14L | 8L | 960RPM |
RHJ-50L | 50L | 1.1Kw | 0-63RPM | 2.2Kw | 0-3000RPM | 1.5 | 35L | 20L | 960RPM |
RHJ-100L | 100L | 1.5Kw | 0-63RPM | 3Kw | 0-3000RPM | 1.5 | 70L | 40L | 960RPM |
RHJ-200L | 200L | 2.2Kw | 0-63RPM | 4Kw | 0-3000RPM | 2.2 | 140L | 80L | 960RPM |
RHJ-300L | 300L | 3Kw | 0-63RPM | 5.5Kw | 0-3000RPM | 2.2 | 210L | 120L | 960RPM |
RHJ-500L | 500L | 4Kw | 0-63RPM | 7.5Kw | 0-3000RPM | 2.2 | 350L | 200L | 960RPM |
RHJ-1000L | 1000L | 5.5Kw | 0-63RPM | 11Kw | 0-3000RPM | 3.0 | 700L | 400L | 960RPM |
Application:
1. Daily Chemical & Cosmetics Industry:
Such as baby cream, skin cream, face cream, shaving cream, shaving cream, lotion, shampoo, toothpaste, cold cream, sunscreen cream,face cleanser, moisture cream, liquid soap etc;
2. Food Industry:
Sauce, mayonnaise, juice, cheese, oral, nutrition, infant food, chocolate, sugar , tomato paste etc;
3. Pharmacy Industry:
Paste, ointment, Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry:

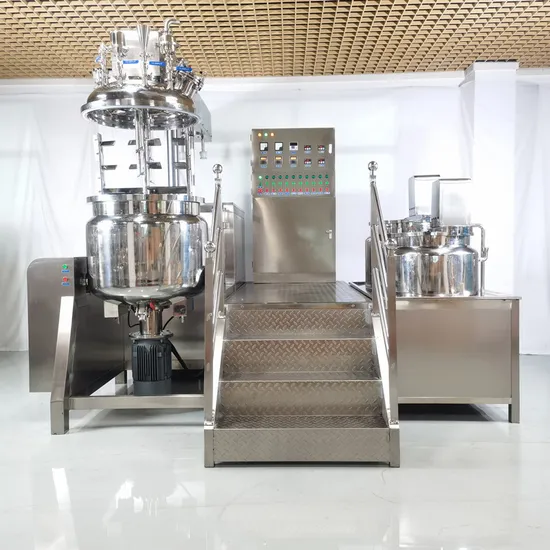

Latex, saponification products, paints, coatings, resins, adhesives, lubricants and the like. Machine Image:
Application Of Product:
GMP PROJECT:
Company information:
FAQ: 1. Q: How about the after sales service for Cosmetic Cream vacuum homogenizer mixer Machine?
A: We provide 2 years warranty for large equipment like full automatic Cosmetic Cream vacuum homogenizer mixer Machine line. provide 1 year for small Cosmetic Cream vacuum homogenizer mixer Machine, such as small batch Cosmetic Cream Homogenizer Machine series. Machine guaranty and technical support lifetime for all kind of Machine. All machine's parts can be replaced for free within the warranty period if broken (excluding error operation).
2. Q: Is it difficult to install the Cosmetic vacuum homogenizer mixer Machine?
A: The work shop should prepare full facility such as power and air compressor. For the first installation, engineer will be sent to set machine and do the machine training as long as manual instruction. For the further problems come out, we will provide solution video/photo instruction as well.
3. Q: What's the Cosmetic Cream vacuum homogenizer mixer Machine lead time?
A: For the standard machines, we can delivery within 35 days. If it is customized by customer(OEM), the lead time is 40-50 days.
4. Q: How can you control the quality?
A: We have a responsible QC department that strictly controls quality, all of our machines will be tested during production process, and will be tested again before packaging. wooden packaging is strong and safety for long delivery.
5. Please feel free to contact us with any question. We will provide you with one-stop service
Our Services:
1) Provide 24-hour service hotline for Cosmetic Cream vacuum homogenizer mixer Machine.
2) Reply and find out solution within the shortest time according to customer's requirement.
3) Provide on call service to help customer solve problems.
4) Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.
5) Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.
6) Provide one year guaranty and lifetime maintenance.
7) One-stop service for workshop decoration, selecting machines and installation service etc.
>>
