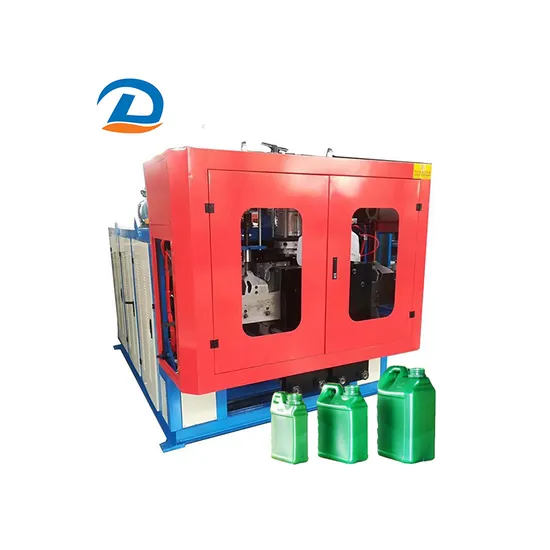

Fully Automatic 20L Jerry Can Bottle Blow Molding Machine

Product Description

Product Description
Product Parameters

Semi Automatic Blow Molding Machinery 5 L PE HDPE LDPE With Great Pricer Semi Automatic Blow Molding Machinery 5 L PE HDPE LDPE With Great Pricer is suitable for producingPP/PE/PU/PC/PVC/PETG/HDPE/LDPE/ABS/..... plastic containers and bottles in all shapes.
MODEL	WSJ-2
Max container capacity	4L
Quantity mold	2 sets
Production capacity	350pc/h
Screwed diameter	65mm
Screwed diameter ratio	1:25L/D
HDPE Max Output	40kg/h
Material cutting method	Hot knife
Max mold size(L×W×H)	220×300×380mm
Blowing pressure	0.4-0.6Mpa
gas consumption	0.5m3/min
Power of mechanical and electrical extruder	11KW
Heating power of extruder	10KW
Total power	23KW
Dimension mm(L X W X H)	L
Weight	2.0T
Control type	PLC PC Control
Suitable material	PE/PP

Detailed Photos
EXTRUSION HEAD
Our continous extrusion machine can adopt 1/2/3/4/6 head for wider product application range to fit bottles of different volume,
also match with related extrusion system it adopt view stripe head and multi-layer co-extrusion head to fit different functional
products.
EXTRUSION SYSTEM
Reasonable head runner design for color change quickly. Die & core individualizedaccording to your product width. Eachcylinder at
each side for head lifting smoothly.
CLAMPING UNIT
Its main function is to execute mould carriage up action, mould closing clampingparison action.mould carriaoe down actionsupply
clamping force to offset air blowingpressure.mould open for product de-molding
HYFTSULIC SYSTEM
Platen moving cylinders with mechanicalshuttlevalve to reduce impact force at end position.Highstationarity and
reliability.accurate operation,long longevity andquickresponse.
CONTROL SYSTEM
Famous brand, true color man-machine controlinterface. Simple and user-friendly page.easy to operate.
We have exporte to all over the worlds. for example Australia, Indonesia,Singapore, Thailand, Cambodia, Vietnam, Bangladesh,India,Pakistan, Mexico, Peru,Chile, Brazil, Egypt, South Africa, Nigeria, Sierra Leone, Sudan, Mali, Kazakhstan,Kyrgyzstan,Turkey, Iraq,etc. Certifications
Our Advantages
Packaging & Shipping
FAQ
1. Can I make milk bottle on this machine Yes, you can. Milk bottle, detergent bottle,pattern pot are available on the machine.2. What shall I provide to you for offer?Please send us your bottle picture with width,length,weights etc and better to send samples.3. What kinds of materials the blow machine make? The blow molding machine can make HDPE,PP material bottles.4. What is your delivery time? 30 days to 50days.5. How can I trust your machine ?- We have more than 10 years experience have own design team and experience
engineer. - You can visit us to check.
- We give professional guidance service during enquiry period.
- We provide after sale install service to abroad clients.

---
