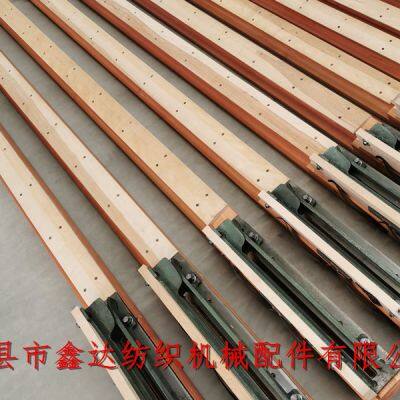

Huixian Xinda Textile machinery accessories long-term supply 75" GA615 Power Loom Wooden Sley Customized, support the door width loom big sley (wood sley) manufacturers to customize, about the conventional 1350 (56 inch) loom dragon length is 2633mm, 1500 (63 inch) loom dragon length is 2807mm, 1800mm (75 inch) loom wood sley length is 3112mm, the following figure is 3235mm wood reed customized according to customer requirements, export type It is used with Japanese shuttle loom. Because the reed of loom is fixed on the upper back of the reed, it is also called "reed bed" and "reed frame wood".
The loom in the above picture is an improved type, which can be used by manual shuttle change. The shuttle boxes on both sides are the same. The lifting back plate is removed, and the accessories are simple. The shuttle board installed in the middle of loom sley frame (reed bed) is also customized, with a length of more than 75 inches. For example, 10 sets of customized wooden reeds, textile sley frame, loom reed frame wood, GA615 loom reed,GA615 power loom sley etc. the delivery cycle takes about 20 days.
The shuttle box of loom sley frame is composed of GA615-3307 shuttle box bottom plate, 3305 shuttle box cover plate, 3306 shuttle box front protection plate, 3303 * 3304 shuttle box back plate, and K00-6 shuttle iron. The main body of one-sided shuttle box of wood reed base is composed of J00-2 gantry, K88 wrapped iron (fixed on 3304 movable back plate), K52 and K53 shuttle box spring, K48 back plate connecting spring, etc.
The loom big dragon is the main frame wood of the loom. The shuttle board is curved with the horizontal surface of the shuttle boxes on both sides. The middle position is low and the two sides are lifted up. The difference is generally controlled within 5mm. The angle between the back plate of shuttle box and the bottom plate of shuttle box is 86.5 ° which is the same as the side angle of shuttle.
It is easy to use and repair the lower part of the loom, because it is easy to use and repair the lower part of the loom. If the majority of textile users want to purchase the door width loom Dragon (wooden reed bed) or customized by manufacturers, please contact our company for details!
>>
