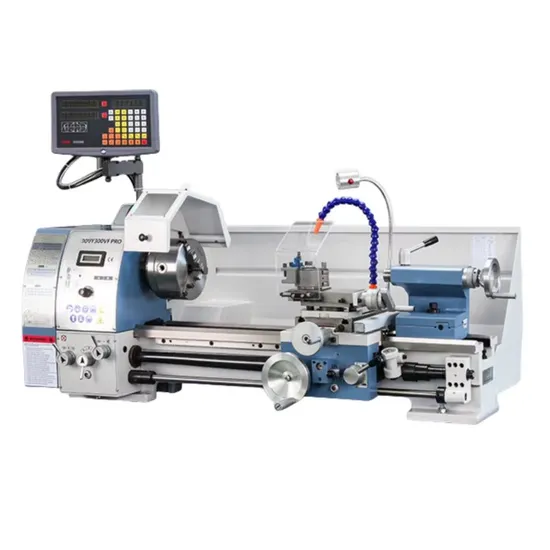

Jy300vf PRO Desktop Household Industrial Grade Hand Lathe/Metalworking Machine Tool

Product Description

Products Description
Features JY300VF mini metal lathe for hobby and education with CE mesin bubut Variable Speed Lathe torno para metal
The Spindle is variable speed, easily opeating.
The spindle spped can be adjusted variably during its range of 50-1800 r.p.m., easily read.
Supersonic frequency hardened bed way.
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Various threads cutting function available.

Swing Over Bed	300mm
Swing Over Cross Slide	180mm
Distance Between Centers	700mm
Width Of Bed	180mm
Spindle Bore	38mm
Spindle Taper	MT5
Number Of Spindle Speed	Varible
Range Of Spindle Speed	30-3000 r.p.m
Number Of Metric Threads	21
Range Of Metric Threads	0.2-3.5mm
Number Of Imperial Threads	18
Range Of Imperial Threads	8-56 T.P.I
Top Slide Travel	63mm
Cross Slide Travel	172mm
Tailstock Quill Travel	94mm
Taper In Tailstock Spindle	MT3
Main Motor	11500W
packing size	1400*700*665mm
N.W/G.W	218/255kgs

Chizhou Jingyi Electromechanical is a professional machinery manufacturing service provider. The factory has a full range of shears, saws, lathes and other processing equipment. The product styles are complete. The products are made of high-quality materials and advanced processing technology. The quality is guaranteed. All products can provide good training and technical services. Welcome new and old customers to inquire.

---
