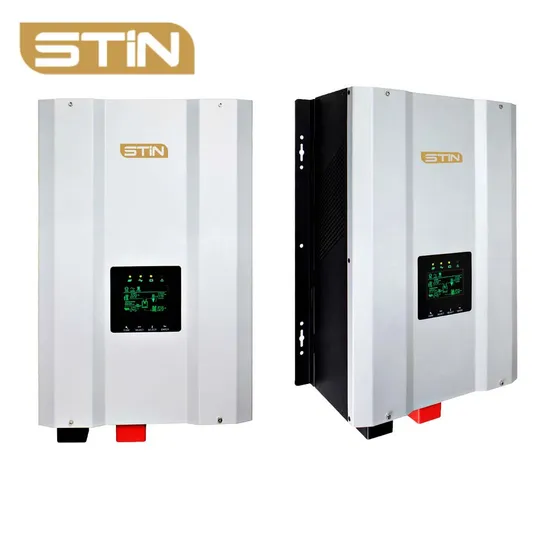

AC/DC 1kw 2kw 3kw 40A Power SMA off Grid Hybrid Solar Power Energy Home Inverter with 48 VDC MPPT Charger for Household Use

Product Description

AC/DC 1kw 2kw 3kw 40A Power SMA off Grid Hybrid Power Solar Home Inverter with 48 VDC MPPT Charger for Household Use Product Description
Main Features
1. GS Series AC/Solar charging Off grid Hybrid Inverter.
2. LED/LCD display, Enhanced functions setting via LCD.
3. Man-machine intelligent design.
4. Built-in 40A/60A optional MPPT solar charger controller.
5. LCD shows the solar power capacity.
6. 5 stages adjustable AC charging current. AC charging also can be closed.
7. AC/DC priority modes can be set.
8. Generator restart signal. (Dry contact).
9. 3 times peak power. Strong loading capacity.
10. Overload, output short-circuit protection......

PRODUCT SPECIFICATION
Model		GS1000W	GS2000W	GS3000W
AC	Nominal Power	1000W	2000W	3000W
Input	Input Voltage Waveform	Sinusoidal (utility or generator)
	Nominal input Voltage	120/230VAC
	Low Line Disconnect	85Vac±4%(Normal) or 80Vac±4% (Wide) for 120V
		184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V
	High Line Disconnect	136Vac±4%(Normal) or 140Vac±4%(Wide) for 120V
		263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V
	Max AC input Voltage	120V for Max150V, 230V for Max270V
	Frequency	50Hz:41-54Hz, 60Hz:51-64Hz
AC	Output Voltage Waveform	Sine wave
output	Power Factor	0.9~1.0
	Nominal Output Voltage (V)	LV:120Vac ±10%rms, HV:230Vac ±10%rms
	Nominal Output	50Hz ± 0.3Hz, 50Hz ± 0.3Hz
	Frequency (Hz)
Solar	Rated Charge Current	40A
charger	PV Input Voltage range	15VDC-40VDC for 12VDC, 30VDC-55VDC for 24VDC, 60-110VDC for 48V
	Max.PV open circuit	12V for 40Vdc, 24V for 55Vdc, 48V for 110Vdc
	array voltage
	Charger mode	MPPT
	PV Low Voltage	PV≥Bat.V+3V
	Re-connect
	PV Low Voltage	PV<=Bat.V
	Disconnect
	Efficiency	≥97%
AC	Nominal Charger	35A/50A/70A/90A(According to the inverter model)
Charger	Current	5 stages adjustable charging current
	Over charge Protection	Bat.V≥15.5VDC for 12V battery, Bat.V≥31.0VDC for 24V battery , Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s
Efficiency	Efficiency(Battery Mode)	≥87%
	Efficiency (Line Mode)	>98%
Battery	Nominal DC input Voltage	12/24/48VDC
Voltage	Low Battery Alarm	10.5VDC±0.3VDC for 12VDC
		21VDC±0.6VDC for 24VDC
		42VDC±1.2VDC for 48VDC
	High DC input	16VDC±0.3VDC for 12VDC
	Alarm & Fault	32VDC±0.6VDC for 24VDC
		64VDC±1.2VDC for 48VDC
	Transfer	20ms(max)
	Time
System	Over-Load Protection	110%
Parameter		the output,load>150%, beeps 0.5s every 1s, and Fault after 20s
	Output Short Circuit	Current limit (Fault after 10s)
	Protection
	Surge Rating(10s)	1:3(VA)
	Power Saver	Load≤25W(Enabled on "P/S auto"Setting of Remote control)
	Protections	Low battery, over charging, over load, over temp
General	Operating Temperature	0ºC~40ºC
Specifications	Range
	Storage Temperature	-15ºC~60ºC
	Operation humidity	5% to 95%(non-condensing)
	Audible Noise	60dB max
	cooling	Forced air,variable speed fan
	Dimension(L*W*H)	480*336*190mm
	Net Weight(kg)	19.5	23.5	28

Product specifications are subject to change without further notice,the form is only for reference,please make the specific parameters as the standard.
