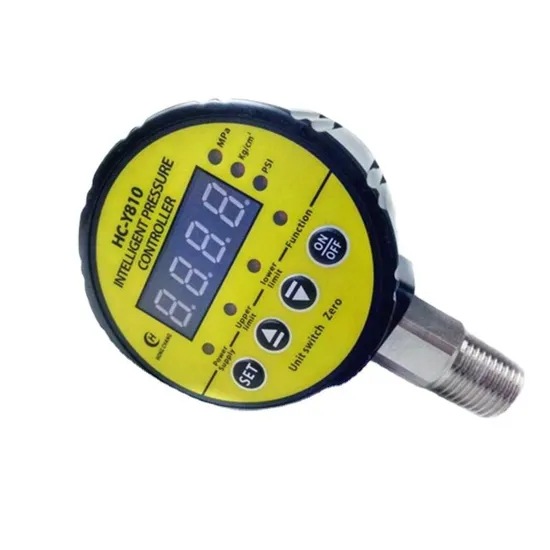

Marchtop Fashion Diqital Hydraulic Water Pump Vacuum 12V Pressure Control Switch

Product Description

Description hydraulic water pump vacuum 12v pressure control switch It is an intelligent digital pressure switch setting pressure measurement, pressure display, control in one professional unit. It has followed features: easy operation, good shock resistance, high precision, long-term stability.
It can realize the control function: low pressure to stop, the high pressure to start or the high pressure to stop, the low pressure to start. The control pressure can be set up in the whole range. It also has the followed functions: delay control, reverse control, three pressure units to change, one key to error clearing, leakage pressure protection, password protection, pressure detection automatically.
It is widely used in building water supply, hydraulic pressure control, supporting equipment of automated machine.

Specification hydraulic water pump vacuum 12v pressure control switch

Pressure Range	0-0.2...0.6...1...1.6...2.5...5...10...25...40...60Mpa
Overload Pressure	150%
Acc.	0.5%FS
Supply	24VDC, 220VAC, 380VAC (Selectable)
Alarm Point Set	Any point can be set within the range.
Output Signal	Relay signal
Load Capacity	380V 3A 220V 5A 24V 5A
Sampling Frequency	5 Times/sec
Operation Temperature	-20~80
Measurement Medium	Liquid, gas compatible with 316L stainless steel.
Connection Protection	Reverse protection, short-circuit protection
Connector	M20*1.5, G1/2, G1/4 (selectable)
Outlet Line	Power: red blue Output: black white

APPEARANCE&CONNECTION METHOD hydraulic water pump vacuum 12v pressure control switch

Working Method:When the pressure increases to the set upper limit of pressure, the black and white lines are disconnected; when the pressure decreases to the lower limit pressure, the black and white lines are connected.
Reverse control function(t000) can be opened in system function to achieve: high pressure to start, low pressure to stop.
* The outlet color finally is based on the product label.

Detailed Images hydraulic water pump vacuum 12v pressure control switch
