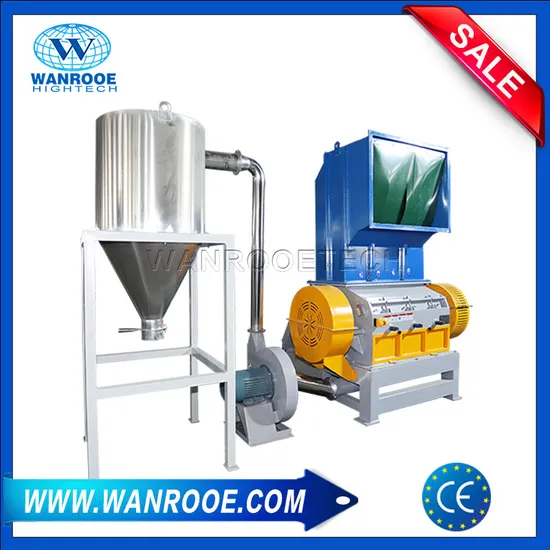

100-3000kg/H Waste Plastic Lumps Waste Bottles Cutter Recycling Crusher Machine

Product Description

100-2000kg/h Waste Plastic Lumps Waste Bottles Cutter Recycling Crusher Machine
Application Areas:
A plastic strong crusher is specially designed for crushing all kinds of thick-wall resin, timber, aluminum foil in the shape of the film, sheet, runner, tubular construction, or hollow container. The crushing material includes PVC, PP, PE, PET, EVA, PC, Sponge, etc.
Description:
Plastic crusher is specialized in crushing various kinds of plastic materials into different sizes of granules(3-8mm). Crushed plastics can be recycled for the reproduction of plastic products. This machine can help reduce the volume of plastic waste, greatly save costs and resources.
Wanrooe crusher machine is designed as tangential feeding so that feeding and swallowing more outstanding. At the same time, the feed port has a plastic cover curtain. Avoid the problem of material jumping easily by the ordinary crusher machine.
This Model crusher uses a claw blade, the material of the rotating blade holder is high-grade steel material, uneasy to abrade or break, making this waste plastic crusher durable and anti-corrosion cracking.
Technical Features:
1. This Series crusher machine adopts imported high-quality tool steel, special cutting-tool. The installation of the cutting tool can be adjusted. The cutting tool can be sharpened again and again, Its use life is very long.
2. The moving cutting knife stand is a step designing to make cutting force resolve and increase the cutting force times.
3. The cutting tool adopts imported SKD11 material and is treated with special technology, which is more durable.
4. The shaft is made of high-level steel.
5.Claw knife structure design, stronger crushing force.
6. The feed hopper of the crusher uses optimization design and special rust-proof treatment, avoiding the leakage and pollution of the material during the process of crushing.
7. The product design is scientific and reasonable and conforms to the European CE standard.
8. The unique cooling water circulation system will bring the heat produced by the machine to the outside of the machine, which can effectively avoid comminution agglomeration.
Technical Parameters

Model	PNSC-7	PNSC-10	PNSC-15	PNSC-20	PNSC-30	PNSC-50A	PNSC-50B	PNSC-60
Power(kw)	5.5	7.5	11	15	22	37	37	45
Quantity of rotating blades	15	21	21	24	30	39	30	39
Quantity of fixed blades	2	2	2	4	4	4	4	4
Rotate speed(r/min)	800	720	720	620	576	576	480	480
Sieve size(mm)	Φ10	Φ10	Φ10	Φ10	Φ10	Φ10	Φ10	Φ10
Weight(kg)	410	580	740	980	1950	2500	3200	4100
Max breaking capacity(kg/hr)	200-300	400-600	500-700	600-800	700-900	800-1000	1000-1600	1200-2000
Size of feeding inlet(mm)	300*210	400*240	500*300	600*310	800*400	1000*400	800*560	1000*560
External size(mm)	1100*800*1200	1300*900*1400	1450*1050*1500	1500*1250*1720	2000*1400*2100	2000*1600*2100	2340*1820*2810	2340*2020*2810

Our Service
1. One year guarantee for whole machine.
2.24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
