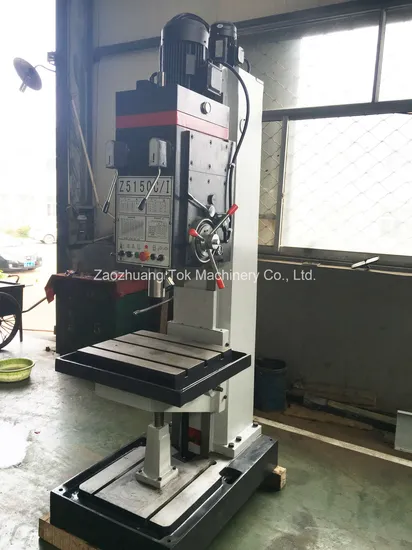

Column Vertical Drilling Machine Z5150b

US$4,200.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5150B
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Diameter
50mm
Spindle Taper
Mt5
Spindle Travel
250 mm
Spindle Box Travel(Manual)
200mm
Spindle Speed Steps
12
Spindle Feed Steps
9
Spindle Speed Range
31.5~1400
Table Size Spindle Feed Range
0.056~1.80
Table Size
560X480 mm
Main Motor Power
3 Kw
Transport Package
1090X905X2530 mm
Specification
1270 KG
Trademark
tokmc
Origin
Shandong
HS Code
84592900
Production Capacity
100 Sets/Year

Product Description

Vertical drilling machine Z5150B Square column vertical drilling machine witha versatile application Tap-automatical recersing device Manual lift table Cross table used in Z5140B-1 Z5150B-1
Specification Unit Z5150B Z5150B-1
Max drilling diameter mm 50 50
Spindle taper MT5 MT5
Spindle travel mm 250 250
Spindle box travel(manual) mm 200 200
Spindle speed steps 12 12
Spindle feed steps 9 9
Spindle speed range r.p.m 31.5~1400 31.5~1400
Table size spindle feed range mm/r 0.056~1.80 0.056~1.80
Table size mm 560 x 480 800 x 320
Longitudinal(cross)travel mm - 450/300
Vertical travel mm 300 300
Max distance between spindle and table mm 750 750
Main motor power kw 3 3
Overall size mm 1090x905x2530 1090x905x1200x2530
Net weight kg 1270 1370
