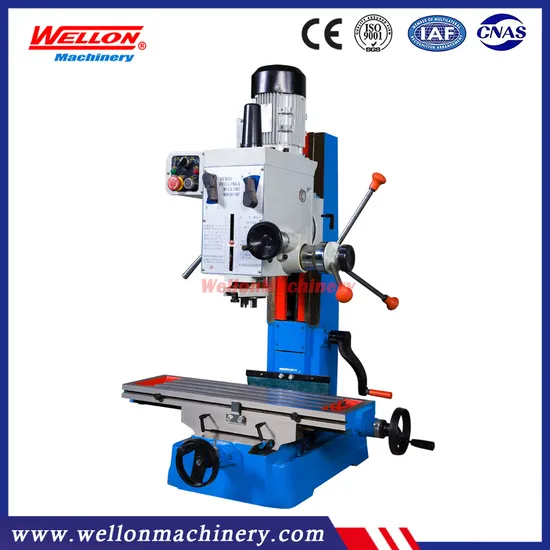

Bench Type Drilling Milling Machine ZX7045B ZX7045B1 Milling Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
Gear hardened, large driven torqueWide spindle speed rangeB1 type 2 speed motor
Technical parameter:

Specifications	ZX7045B	ZX7045B1
Max. Drilling capacity (mm)	cast iron:45/ Steel:32	cast iron:45/ Steel:32
Max. face mill capacity (mm)	80	80
Diameter of vertical milling (mm)	22	28
Diameter of column(mm)	115	115
Spindle travel (mm)	110	110
Distance spindle axis to column generating line (mm)	260	260
Max. Distance spindle nose to table(mm)	475	475
Spindle taper	MT4 orR8	MT4 orR8
Spindle speeds range (r/min)	50~1250	50~2500
Spindle speeds series	6	12
Spindle feeds(mm/r)	0.12 0.18 0.25	0.12 0.18 0.25
Dimension of worktable surface (mm)	820x240	820x240
Table travel (mm)	540x170	540x170
Dimension of base(mm)	605x558	605x558
Coolant motor(w)	40	40
Net/Gross weight(kg)	360/405	360/405
Overall height (mm)	1100	1100
Main motor (W)	Single-phase:1100 Three-phase: 1500	Single-phase:1100 Three-phase: 1500

Standard accessories: Drill chuck 16mm.
Cutter 80mm
Taper sleeve
Arbor
Wrench
Draw bar
Optional accessories:
Milling chuck
Safety guard
Angle vice
Stand
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
