Product Overview

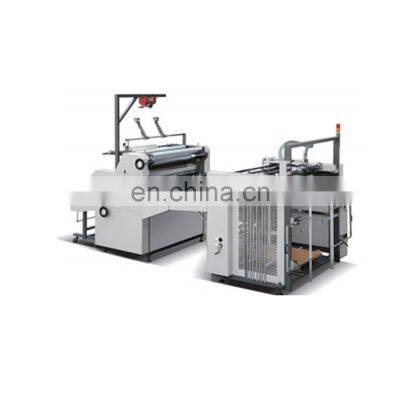

SZFM-1100 Automatic Water-based Laminating Machine
The functional design of SZFM-1100A automatic water-based laminating machine is humanized and automated. Color touch screen makes the control of mechanics, electrics, pneumatics and photoelectricity much more simple and convenient. Pre-stacker feeder, electric film lifer etc. automated equipments improve further the machine working efficiency. SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped perfect the running stability and safety of the laminator. For high efficiency of water-base lamination, this model is an excellent choice.
FEATURES AT A GLANCE
1. Humanized and automated
2. Color touch screen
3. Easy to operate
4. Pre-stacker feeder
5. High efficiency
6. Famous brands of electronic parts
7. Run stable and safe
PRODUCT SPECIFICATIONS
No
| Item
| Data
|
1
| Model
| SZFM-1100
|
2
| Max. Laminating Width
| 1040x780mm
|
| Min laminating size
| 350x440mm
|
4
| Max speed
| 60m/min
|
5
| Paper weight
| 125-500gsm
|
6
| Power
| 8kw
|
7
| Total Weight
| 2000kg
|
8
| Overall Dimensions
| 3800x1750x1700mm
|
Product Configuration
1.Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically. And paper can be added even when the machine is kept running.
2.Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.
3.Conveying table is furnished with air aspirator, side lay and front lay etc. to guarantee paper conveying and overlap stable and regular, and paper feeding precision can be perfected effectively.
4.Automated operation is controlled by PLC system. Color touch screen simplifies the machine operation.
5.Transmission system equipped SCHNEIDER frequency converter for continuously speed variation. Speed adjustment is more stable and accurate.
6.Dip coating saves glue, and ensures glue coating homogenized. And the thickness of glue coating is adjustable.
7.Glue supplying system supplies and recycles water-base glue automatically for water-base lamination.
8.Electric lifter of film roller settles the loading trouble of big and heavy film roll.
9.Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
10.Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
11.PHILIPS IR drying lights guarantee smooth working in damp atmosphere.
12.Automatic rewinder can roll up laminated paper automatically. And magnetic powder clutch is equipped on the rewinder to make the adjustment of rewinding tension more convenient and effective.
Note: The winded paper shall be put on cutting machine for automatic cut.
Company Profile
Why Choose Us?
1. With 10 years' Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Exhibition
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
