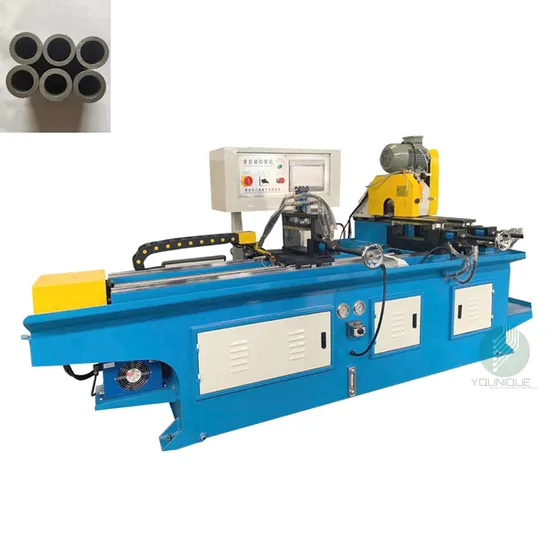

Automatic Pipe Cold Cutting Machine, Pipe Cutting Saw Machine

Product Description

Product Description First, equipment features:
1, vertical cutting, automatic feed, cylinder automatic clamping device, smooth operation, light, efficient.
2, transverse clamping, so that the workpiece clamping stable, smooth section without burrs, low noise, low pollution.
3, Mitsubishi servo motor with ball screw, feed seat and then move on the linear guide rail, high feeding accuracy, fast speed, stable feeding, smooth section, auxiliary entrain floating function, prevent pipe fittings from scratching on the main clip.
4, high cutting precision, perfect incision.
5, with no material stop, saw blade protection function, automatic lubrication and cooling function. With pulling tail material function, cutting tail material shorter than cutting workpiece length.
6, the use of self-lubricating bearings, connecting shaft self-lubrication, no damage to the machine. The oil circulation system cooling system extends the service life of the machine.
7, all gear head using motor horizontal, five groups of all gear bite four speed change, more stable, more wear-resistant, stronger head power.
8, the cooling system makes the machine run for a long time and extends the service life of the saw blade.
9, the head column, using linear guide under the knife, more smooth and durable.
10, can cut a variety of cross-section shapes of ordinary steel, stainless steel, copper, aluminum and other metal profiles. It is a high-quality equipment for mass production of steel pipe furniture, sports and fitness equipment, tourism and leisure products, automobiles, motorcycles, bicycles, stainless steel and iron decoration and other industries.
Technical Parameters

Performance		Specifications
Cutting capacity	round bar	∅40mm
	square bar	35*35mm
	round pipe	∅120mm
	L-shape bar	60*60mm
	square pipe	100*100mm
Feed length	5mm-6m no manual positioning/servo motor
Blade speeds	stepless adjustment
Host motor	2.2kw/2.8kw
Saw	∅300-450mm
Machine dimensions	3300mm*1500mm*1900mm
Total weight	1450kg
