Z-Rubber Vulcanizing Tank Vulcanization Steam Autoclave Factory Plant Manufacturers 3600X8000mm

Product Description

Product Description

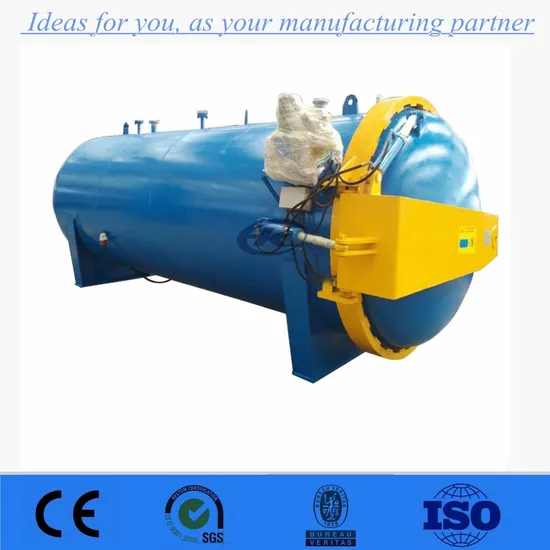

Rubber Hose Vulcanization Autoclave/Vulcanizing Tank/Vulcanization Machine
Technical Parameters:

type	ubber vulcanizing machine
temperature	150-220 degree
diameter	1500MM
length	6000MM
design pressure	1.0Mpa
temperature control ways	automatic
pressure control ways	automatic
time control ways	automatic
usage	rubber shoes , rubber covered roller
alarm	automatic
Product Keywords	electric rubber autoclave,autoclave pressure vessel,rubber vulcanization

Temperature ,pressure, time, adopt the automatic control ,stable and reliable performance ,convenient use ,is a traditional vulcanizing tank equipment.0.6-3.0Mpa design pressure, design temperature150-220'C,600-5000mm in diameter ,length between 1000-60000mm,according to the product technical requirements for individual design customized for clients .Steam tank bottom enters, imported by the automatic control valve at the tank bottom setting steam ,the steam vertical diffusion tube arranged in the tank bottom ,small and medium-sized mouth diffusion tube (3mm,4mm,5mm)arranged according to certain rules and Angle offset, to ensure that the steam into the tank after the temperature even spreading around ,prevent the uneven steam diffusion caused by the different product quality. Affer setting process ,automatic control system for heating ,heat preservation, sulfide, vulcanization after send out sound light alarm and automatically stop working.
Why to choose our rubber autoclave for curing?
1.Our ram material is national goverment pointed facmous steel factory ,and standard pressure vessel special plate ,Q345R .Each steel is tested before leaving factory .It have good bear pressure
2.heating area is uniform ,according to your working technology to design inside heating system ,we have special design heating sink ,,it is arranged in the up side ,bottom ,left side ,right side ,
3.Adopt external insulation ,the galvanized sheet is welded around the tank (it wont rust within 10 years),inside are 80mm insulation cottom ,heat insulation head add 60mm thermal insulation , then add fixed bolt .To make inside heating value can be used enough ,and reduce consumtion , save cost . and it is easy for transportation.
Packaging & Shipping
Workshop
FAQ
1.What is the max size can you do?
The max diameter which we can produce is 4.5m.
The length is up to the clients' requirement.
2.How many wood can you treat for one circle ?
It is up to your choose diameter and length
3.How long to finish one circle ?
Generally is 2-3 days. is up to wood's thickness.
4.Is it manual or automatic operation ?
This machine is full automatic type.
5.Can we install the equipment by ourselves?
Of course ,we have full set drawing which will send to you after order
6. lf your engineer is aviliable to oversea to install
Yes ,if you need ,we can arrange the engineer to install for you.
Our autoclave take about 25% in China domestic market of rubber cure autoclave, Exporting machine reach to America, British, India, Egypt, Russia, Thailand, Korea, Japan, Indonesia, Vietnam, Malaysia etc.
Welcome to place an order.

---
