High Quality 50kVA 3 Phase Automatic Voltage Regulator Stabilizer

Product Description

Product Description1.Overview
TN D/S (SVC) type high-precision fully automatic single and three-phase AC regulated power supply (hereinafter referred to as regulated power supply) is a new generation of regulated power supply developed and produced by our company, which is the leader of AHKDQ family. The stabilized power supply is composed of a contact type voltage regulator, an automatic control circuit, and a servo motor. When the voltage of the power grid is unstable or the load changes, the automatic control circuit samples, amplifies, and controls the servo motor to drive the rotating arm and brush to rotate in the required direction, so as to adjust the output voltage to the rated value and achieve voltage stabilization.
This regulated power supply has the characteristics of beautiful and elegant appearance, small size, light weight, low power consumption, complete protection functions, stability and reliability, and small output waveform distortion. Widely used in industrial production, scientific research, medical and health care, household appliances, and other areas with high voltage fluctuations or seasonal changes in power grid voltage
2.Normal working and installation conditions
2 1. Environmental temperature -5 ºC~+40 ºC;
2.2 Altitude not exceeding 1000 meters;
2.3 Relative humidity: 15%~90% (at 20 ºC);
2.4 The installation site should be free from gas, steam, or chemical deposits that seriously affect the insulation of the regulated power supply
Indoor areas with lakes, dust, dirt, and other explosive and corrosive media.
2.5 The installation site should be dry and ventilated, and avoid high temperatures and water exposure.
3.Three types, characteristics, and basic parameters
3.1 Product Model and Meaning
TN (S VC)
Capacity of regulated power supply (kV A)
Design serial number, unordered number defaults to 1
Foreign models
D: Single phase; S: Three phase
Automatic voltage regulator (high-precision fully automatic AC regulated power supply)
3.2 Technical features
3.2.1 Output capacity
The relationship between output capacity and input voltage is shown in Figure 1. When the input voltage is below 1.98 V, the output capacity of the product will decrease, and the capacity must be reduced for use; Select an output voltage of 11 0 V.
The output capacity cannot exceed 50% of the rated capacity to prevent overload.
3.2.2 Overload capacity
It is strictly prohibited to overload the product for a long time during use. When the input phase voltage changes from 19.8 V to 25.0 V (line voltage from 3.42 V to 4.30 V), it is allowed to operate according to Table 1 for emergency use.

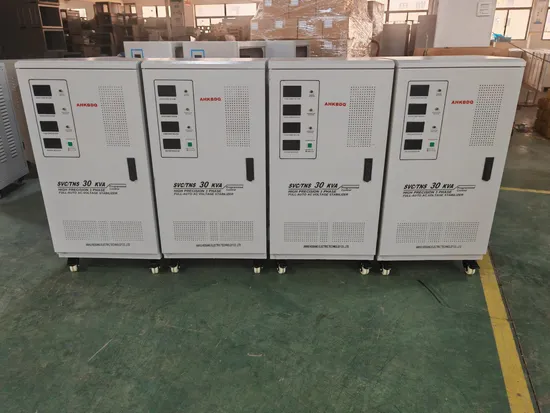

Detailed Photos Product Parameters

Brand	AHKBDQ
Product Model	TNS
Type	Servo Type
Phase Number	Three phase
Input/output Voltage	220v 380v 415v or Customized
Outlet Row	Terminal
Cooling Model	AN/AF
Output Wave	Pure Sine Wave
Packing	Woodon Box
Working Environment	Temperature: -40~+45°C, Humidity: ≤95%RH No condensation
Applicable Altitude	Below 4000m
Design	More than 10 years
