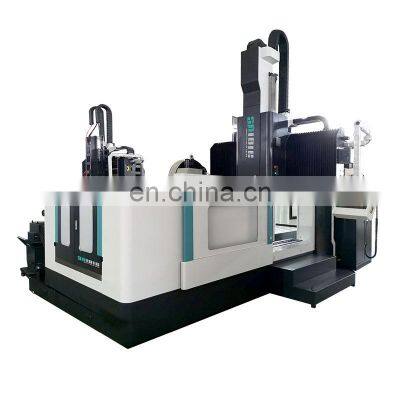

SP1016 CNC Gantry Machining Center Machine 5 axis

Product Description

Product Description
SpecificationSP1016X-axis travel1650mmY-axis travel1100mmZ-axis travel600mmDistance from spindle nose to worktable surface160-760mmWorktable size(WxL)1600×1000mmT-slots size (NxWxD)7-22mmMax. load bearing of worktable3000 kgsX/Y/Z guideway sizeRoller 2-45/2-45mm,Z-axis hard guidewayRapid feed speed of X axis20000 mm/minRapid feed speed of Y axis20000 mm/minRapid feed speed of Z axis12000 mm/minMain motor power18.5KWSpindle modelBT50/Φ150Motor torque71.7N.MSpindle taperBT50Blind rivets aizeP50T-2-MAS403Driven typeBelt/Gear box 1：4X/Y/Z linear guideway sizeX/Y-axis 2-45# roller linear guidewaysX/Y/Z ball screw sizeX-axis 6316,Y-axis 5016,Z-axis 5016Tool magazine capacity24pcsTool arborBT50Max. tool dimensionΦ110/Φ220mmMax. length of tool300mmMax.tool weight18kgsPositioning accuracy0.03mmRe-positioning accuracy0.018mmMachine weight18000kgsOverall size (LxWxH)6000×4000×3900 mmRelated ProductsVMC850L vertical machining center 95% Response RateVMC1200L 3 axis cnc milling machine center95% Response RateVM1580L heavy duty 4 axis cnc machining center95% Response Rate
