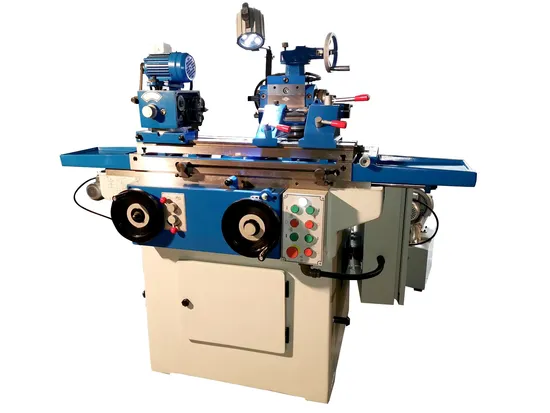

Grinding machine model Multi Grind is a kind of universal machine.It has both the characters of a universal cylindrical grinding machine and the characters of a tool and cutter grinding machine and is suitable for external grinding internal grinding and surface grinding as well as for sharpening genera cutting tools such as various milling cutters ,reamers , pinion cutters and straight fluted hobs , etc. This machine is suitable for common small machine plants, tool workshops , repair workshops and research institutes of science and technology.
Working area
|
|
Grinding diameter
| 200 mm
|
Workpiece length (max.)
| 500 mm
|
Workpiece weight (max.)
| 10 kg
|
Workpiece width surface grinding
| 50 mm
|
Workpiece length surface grinding
| 200 mm
|
Grinding length
| 200 mm
|
Inside grinding measures, optimal
| Ø10-50 x 75 mm
|
Outside grinding measure, maximum
| Ø5-50 x 400 mm
|
Tool grinding measure
| 200x500 mm
|
Table swivel range (max.)
| +45° / -30°
|
Travels
|
|
Travel Z-axis
| 480 mm
|
Feed
|
|
Feed per hand-wheel rotation X-axis, fine
| 1 mm
|
Feed per hand-wheel rotation X-axis, rough
| 4 mm
|
Feed per scale division X-axis, fine
| 0,005 mm
|
Feed per scale division, X-axis, rough
| 0,02 mm
|
Scale division of height adjustment
| 0,01 mm
|
Tailstock
|
|
Height adjustment per handwheel rotation
| 1 mm
|
Tailstock taper
| MT 2
|
Tailstock quill stroke
| 14 mm
|
Grinding headstock
|
|
Grinding spindle speed
| 2.500 rpm
|
Inside grinding spindle speed
| 13.500 rpm
|
Grinding headstock swivel range
| ± 90 °
|
Headstock
|
|
Working headstock swivel range
| ± 90 °
|
Working spindle taper
| MT 2
|
Working spindle speed
| (3) 110 - 300 rpm
|
Chuck diameter
| 100 mm
|
Drive capacity
|
|
Machine drive capacity
| 2,525 kW
|
Motor rating main drive
| 1,1 kW
|
Measures and weights
|
|
Grinding wheels dimensions
| 200x20x75 mm
|
Grindstone dimensions, inside grinding (min.)
| 10x10x3 mm
|
Grindstone dimensions, inside grinding (max.)
| 25x20x6 mm
|
Overall dimensions (length x width x height)
| 1520x1350x1400 mm
|
N.W./G.W.
| 1350 /1700kg
|
