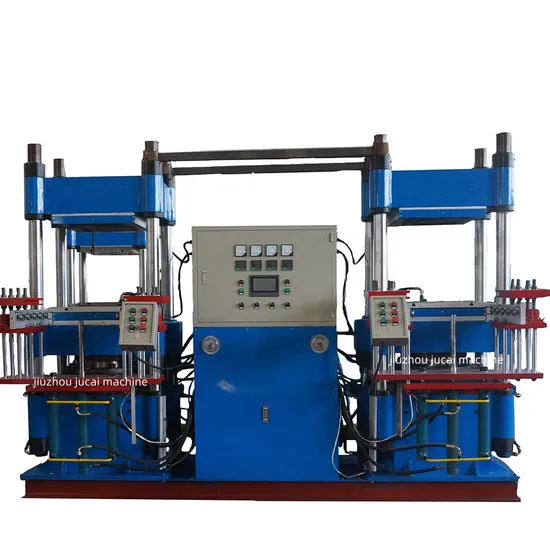

Duplex Plate Vulcanizing Press, Rubber Vulcanizing Press, Plate Vulcanizing Press

Product Description

Duplex Plate Vulcanizing Press, Rubber Vulcanizing Press, Plate Vulcanizing Press
Supply Range
Our range of products include
1.Column type Vulcanizing Press
2.Precure Tread Liner Molding Press
3.Foaming Press Machine
4.Hydraulic Heating Press Machine
5.Plate Vulcanizing Machine
key Configuration information
1.Hydraulic spare part : Yuken seriesFrom Japan
2.Electrical PLC : MITSUBISHI From Japan , SIMENS From Germany
3.Sealing : NOK brand from Japan
4.Main electrical elements : Schneide from France
5.Temperature controlled meter : Omron from Japan
6.Motor : SIMENS From Germany
Application
1.Applicable for various rubber moulding production
2.PLC control & touch screen
3.Auto mold closing, air exhaust, temperature control, timing setting
4.Custom mold push out system
5.Well-sealed hydraulic cylinder with precise grinding and finishing
6.Stable hydraulic pressure station Machine Display
Machine Feature
1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX typepolyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant .Our machine adopts the double seals structure , and seals part is easy change and protect
2.Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for
vulcanization , automatic alarming , automatic mold opening ,etc
3..The vulcanizing temperature can be set and showed in the digital displan .
4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically
5.Pillar is made of high quality # 45 steel, The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation
7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time
8.Mainly hdralic spare parts are imported from Taiwan , not our local brand
Product Parameters

model/	XLB-D0.25MN	XLB-D0.5MN	XLB-D0.8MN	XLB-D1.0MN	XLB-D1.0MN
Mold closing force	0.25	0.5	0.8	1.0	1.0
Heating plate size	300*300 350*350	400*400 450*450 500*500	500*500 600*600	450*450	550*550
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	152	200	250	285	300
Unit area pressure of heating plate (kg/cm2)	27.7 20.4	31.2 24.6	32 22.2	49.3	33
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen
Gross weight	900	1200/1350/1450	1550/1750	2200	2300

model	XLB-D1.0MN	XLB-D1.2 MN	XLB-D1.6 MN	XLB-D2.0MN	XLB-D2.5MN
Mold closing force	1.0	1.2	1.6 MN	2.0	2.5
Heating plate size	600*600	700*700	750*750	800*800	1000*1000
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	300	320	360	400	450
Unit area pressure of heating plate (kg/cm2)	27.7	24.5	25	31.25	25
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen

Company Profile
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.

---
