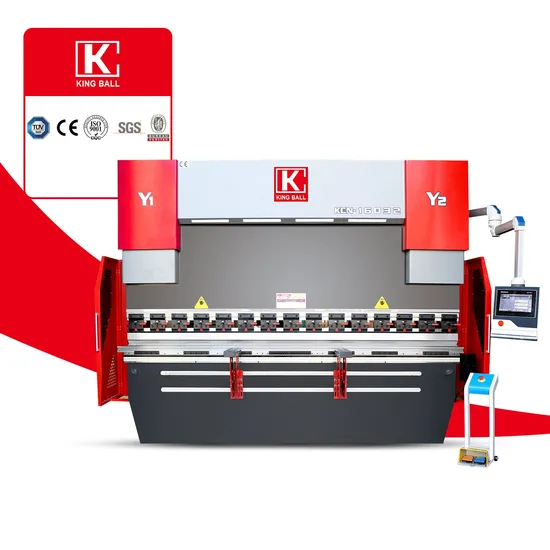

100ton 3.2m Length Electro Hydraulic Synchronous 4+1 Axes CNC Bending Machine Press Brake Kcn 10032 with CT12 Controller

Product Description

hydraulic aluminum steel bar bending machine cnc automatic stirrup bending machine
Model: KCN-10032
4+1 Axis CNC Control(X,Y1,Y2,R,W)
X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R : Backgauge up and down; W: Worktable crowning
Product Description
Main functions and features
1.Overall welded and processed structure.
2.Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
3. Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
4. Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
5.Switzerland cybelec CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
6. Ram stroke(Y1, Y2),backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
7.Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Technical Parameters

NO.	Item	Parameter		Unit
1	Nominal pressure	1000		KN
2	Table length	3200		mm
3	Max.Slider stroke	200		mm
4	Max.Shut height	460		mm
5	Between columns	2700		mm
6	Throat depth	400		mm
7	Main motor power	7.5		KW
8	Down Speed	180		mm/s
9	Pressing Speed	12		mm/s
10	Return Speed	160		mm/s
11	Control axis	X+Y1+Y2+R +W		/
12	X axis Stroke	500		mm
13	X axis Speed	300		mm/s
14	R axis Stroke	150		mm
15	R axis Speed	50		mm/s
16	Backgauge Stoppers	2		/
		L	3700	mm
17	Overall dimension	W	1750	mm
		H	2630	mm
18	Machine weight	7500		kgs

Backgauge with ball screw and linear guide, high precision, fast speed and low noise.
Double sliding front support arm installed High precision electric table crowning
on the linear guide, movable easy
Siemens main motor German brand. European style quick release clamping
Sunny pump USA brand.
Rexroth valve German brand.
The guideway use the brass, wear-resisting, long service life
High-precision grating scale mounted Pedal switch with emergency stop.
on C-board.
The stopper move left and right on two linear guides
Main configuration

Name	Producer
CNC controller	CT12 Switzerland brand
Main motor	Siemens Germany brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw ,Linear guide	HIWIN Taiwan brand
Grating ruler	GIVI Italy brand
Tubing connector	EMB Germany Brand
Servo Motor and drive	Thinkvo China brand

CybTouch 12 CNC controller
Easy Operating
Large, vivid and high-contrast fully touchscreen.
Simple pages, clear display, large keys.
Intuitive user-friendly interface.
Complete programming for efficient mass-production with multiple bends.
Easy single bends with Easy Bend page.
On-line help and interactive warning pop-ups.
Comfortable wireless data backup and software updating using PC or Notebook.
Large variety of languages available.
Better Bending
Various automatic calculations of bend functions.
Bending sequences and programs can be memorized.
Angle, pressure and crowning management.
Easy manual movement.
Offline 2D software available.
Powerful
Controls 4 axes.
Automatic bend sequencing (option).
Bend allowance calculation.
Pressure - crowning calculation.
Modular tools for each part or bend.
Angle and back gauge correction.
Tele maintenance via wireless connection with PC or notebook.
USB port for memory stick for data transfer/backup.
The standard accessories are in the below: Anchor bolt Hex nut Seal ring Gasket Grease gun Allen wrench Foot switch Front support arms Electrical box key, control panel key Operation manuals

---
