Basic Info.
Type
Surface Grinding Machine
Processing Object
Metal Workpiece
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Certification
GS, CE, RoHS, ISO 9001
Name
Perfect Precision Flat Surface Grinding Machine
Magnetic Chuck Table Size
200X460mm
Max. Loading Capacity
180kgs
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Longitudinal Moving
Hydraulic
Vertical Travel
Servo Motor
Control
PLC Automatic Control Grinding
Grinding Wheel Size
200X20X31.75mm
Transport Package
Wooden Pallet
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

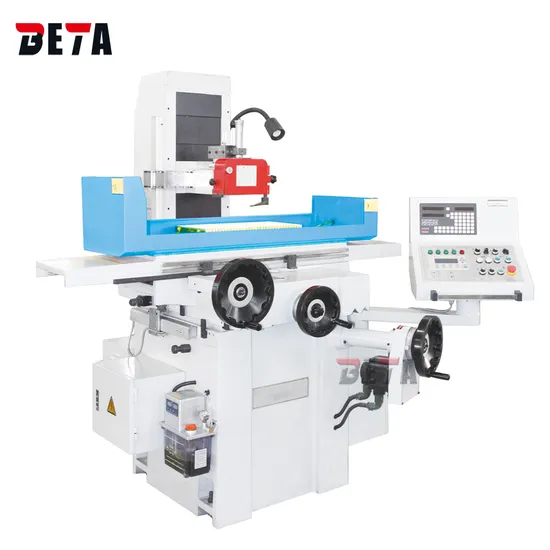

Perfect Precision Flat Surface Grinding Machine Price For Metal
| Model | Unit | SGA2050AH | SGA2050AHR | SGA2050AHD |
| Table size | mm | 200*508 | 200*508 | 200*508 |
| Magnetic chuck size | mm | 200*460 | 200*460 | 200*460 |
| Max.distance from spindle center to table | mm | 450 | 450 | 450 |
| Table cross travel | mm | 240 | 240 | 240 |
| Table longitudinal travel | mm | 560 | 560 | 560 |
| Max.loading capacity (include chuck) | kg | 180 | 180 | 180 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Cross motion | | | | |
| intermittent feed rate | mm/t | 0.1~8 | 0.1~8 | 0.1~8 |
| rapid speed | mm/min | 990 | 990 | 990 |
| feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 |
| vertical motion | | | | |
| auto down feed rate | mm/t | - | - | 0.005~0.5 |
| rapid down speed | mm/min | - | 650 | 480 |
| feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 |
| spindle rotating speed | r/min | 2850 (50HZ) / 3450 (60HZ) |
| grind wheel size | mm | 200*20*31.75 |
| spindle motor power | kw | 2.2 |
| floor space (L*W*H) | mm | 2300*1600*1675 |
| Gross weight | kg | 1650 |
| Packing size (L*W*H) | mm | 2000*2100*2150 |
Standard accessories:
PLC automatic grinding controller ,
Standard grinding wheel,
Grinding wheel flange, Wheel extractor,
Working lamp, Balancing arbor,
Electric magnetic plate 250x500mm,
Wheel dresser stand, coolant tank,
Leveling wedge and bolt, Tools & Tool box
Optional accessories:
Dust exhaust apparatus
Balance stand
parallel dresser
2-axis digital readout
closed guard of worktable
closed guard of oil tank
magnetic separator
magnetic separator & paper filter
Luxury splash board
Closed wooden case packaging
>>
