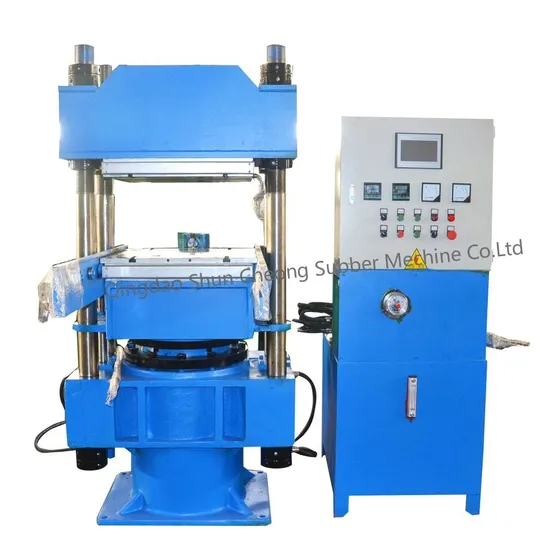

Hot Sale Vulcanizing Press for Curing Rubber Product

Product Description

Hot sale vulcanizing press for curing rubber product
1. The press has two electrical platens (one working layer)
2. Automatic press with PLC.
3. Height from floor to underside of top heated platen according to clients requirements design.
4. Daylight when press open according to clients requirements design.
5. Independent control panel.
6. Hot plates made of HT200, surface by surface grinding processing, plate face to face parallelism accuracy ± 0.05mm, finish is 1.0μ M.
7. The wires are connected machines, as long as the power supply is connected, the machines can work.
We can as clients requirments design different heating method: Steam heating or electrical heating.
After services:
1. Our company products must pass inspection through 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of the guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes " customer file" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. After-sales service complaints
Our company is willing to have friendly cooperation with all the customers and jointly crease the win-win situation. We have high-quality products and excellent after-sales service. Welcome to visit our company!
Main Parameter:

Type	XLB-DQ1200× 1200× 2	XLB-DQ1300× 2000× 1	XLB-Q1200× 2500× 1	XLB-Q1500× 2000× 1	XLB-Q2000× 3000× 1	XLB-Q1400× 5700× 1
Total pressure(MN)	315t	560t	750t	1000t	1800t	2800t
Platen size(mm)	1200× 1200	1300× 2000	1200× 2500	1500× 2500	2000× 3000	1400× 5700
Daylight (mm)	200	400	400	400	400	400
No of Daylights	2	1	1	1	1	1
Piston stroke(mm)	400	400	400	400	400	400
Plate Unit Area pressure(kg/cm2)	22	21.5	25	33.5	30	35
Main motor power(kw)	3	8	9.5	11	26	43.5
Overall dimension(L× W× H) (mm)	1685× 1320× 2450	2000× 1860× 2500	2560× 1700× 2780	2810× 1550× 3325	2900× 3200× 2860	2400× 5800× 3600
Weight(kg)	9500	17000	20000	24000	66000	110000

Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.
Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
Our Services
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

---
