New Arrival CNC Wire Smart Hydraulic Mountain Quarry Wire Saw Machine

Product Description

Product Description

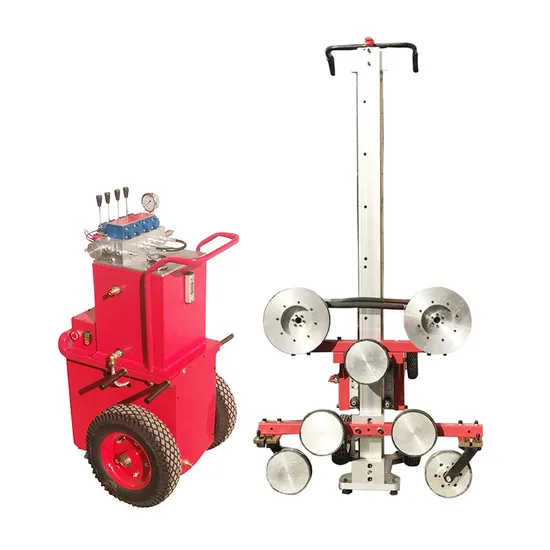

New arrival cnc wire smart hydraulic mountain quarry wire saw Hydraulic wire saw machine (wire saw) uses the oil pressure of the hydraulic pump station to drive the hydraulic motor to rotate. The hydraulic motor drives the driving wheel to rotate, and the driving wheel drives the rope to rotate. At the same time, the rope is guided by the driven wheel to control the direction of the rope to rotate at high speed, thereby achieving the purpose of cutting the steel bars. Concrete cutting for demolition purposes. This equipment can achieve various cuttings of thicker concrete. It is generally used in the static cutting and removal of bridges, piers, dock platforms, and underwater concrete piles to ensure that the original structure is not damaged.
Features of Diamone wire saw machine
1. High efficiency, capable of cutting underwater and cutting irregular objects
2. There is no need for a large amount of cooling water. Anyone who has used a hydraulic wire saw knows that the hydraulic pump station must use cooling water to cool the oil temperature to reduce the problem. The electric wire saw does not need a large amount of cooling water, only the rope head is needed. Just add cooling water and it can work for a long time.
3. Low cost: It can be operated with household electricity, eliminating the need for a hydraulic system, so the cost is much lower. Product Parameters

wire drive mode	hydraulic	rated output power	22/25kw
mode type	HM-40/80	working voltage	380v50Hz
minimum input power	25HP or 33HP	hydraulic pump station	gear pump
output shaft speed	350/940/1300r/min	motor working flow	40-100L/min
maximum wire length	18m	working pressure	15-20Mpa
feeding method	fully hydraulic	oil tank volume	16L

Detailed Photos
Packaging & Shipping

Company Profile

---
