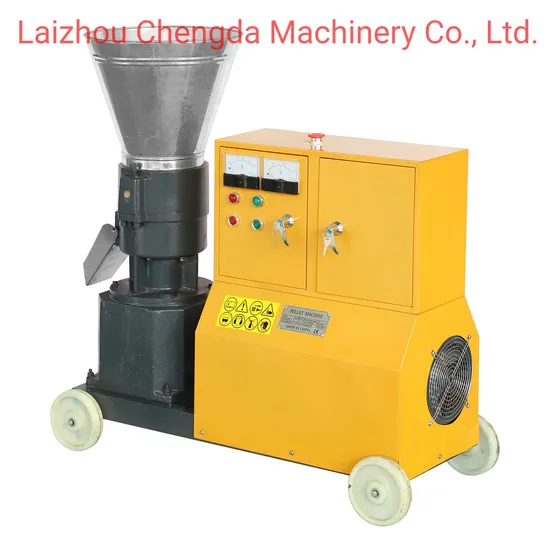

Family Use 200-300kg/H Cow Sheep Pellet Making Machine

Product Description

Feed Pellet Machine/feed mill/feed machinery /feed pelletizer/ Feed Pellet Making Machine
Specifications
Smallest pellet mill:
1.CE certificate
2. Model No.: KL120 series
3. Die size from 2.5mm to 10mm

Small pellet mill description:
1. Small pellet mill can make all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feed.
2. You can use all of the sawdust as raw materials: Paddy straw, sunflower stalk, forestry wastes, wood chips, chemical and many other wastes or solid power material.
3. KL120 and KL150 are the smaller types.
4. All of our pellet mills have passed CE certificate, which all parts can meet EU standard.


Special instruction:
1. Version A pellet mill are driven by diesel engine or gasoline engine.
2. Version B pellet mill are dirven by E-motor, without extra cabinet and cover on the motor.
Technical parameters for KL120 and KL150:

MODEL NO.	OUTPUT (kg/h)	POWER (HP or KW)	SIZE (cm)	NW/GW (kg)	Qty/20'FCL	Remak
KL120A	90-120	7.5hp	76*43*71	80/100	90	gasoline engine
KL120A	100-130	8hp	87*44*73	120/140	90	diesel engine
KL120B	75-100	2.2kw/220V	75*32*61	80/100	168	CE motor
KL120B	75-100	3kw/380V	75*32*61	80/100	168	CE motor
KL150A	110-210	7.5hp	76*43*71	95/115	84	gasoline engine
KL150A	120-220	8hp	87*46*73	120/140	84	diesel engine
KL150B	150-200	4kw/380V	75*35*65	95/115	126	CE motor
KL200A	250-350	15hp	118*56*95	280/310	40	diesel engine
KL200B	200-300	7.5kw/380V	100*43*95	200/230	60	CE motor
KL200C	200-300	7.5kw/380V	100*46*90	200/230	60	CE motor
KL230A	350-500	22hp	118*56*95	280/310	40	diesel engine
KL230B	350-450	11kw/380V	114*47*97	290/320	45	CE motor
KL230C	350-450	11kw/380V	114*54*93	290/320	45	CE motor
KL260A	300-500	30hp	184*70*116	450/480	16	diesel engine
KL260B	400-600	15kw/380V	120*52*107	330/360	40	CE motor
KL260C	400-600	15kw/380V	122*53*107	330/360	40	CE motor
KL300A	600-850	55hp	200*60*123	520/560	16	diesel engine
KL300B	700-800	22kw/380V	127*52*107	410/450	30	CE motor
KL300C	700-800	22kw/380V	128*58*105	410/450	30	CE motor
KL360A	700-950	55hp	227*62*126	600/620	16	diesel engine
KL360C	700-950	22hp/380V	134*58*106	470/500	30	CE motor
KL400A	800-1100	55hp	227*62*126	750/780	16	diesel engine
KL400C	800-1100	30kw/380V	145*62*115	630/660	25	CE motor
