2023 China mini drilling milling machine ZX32GV mill drill metal machine

Product Description

Product Description

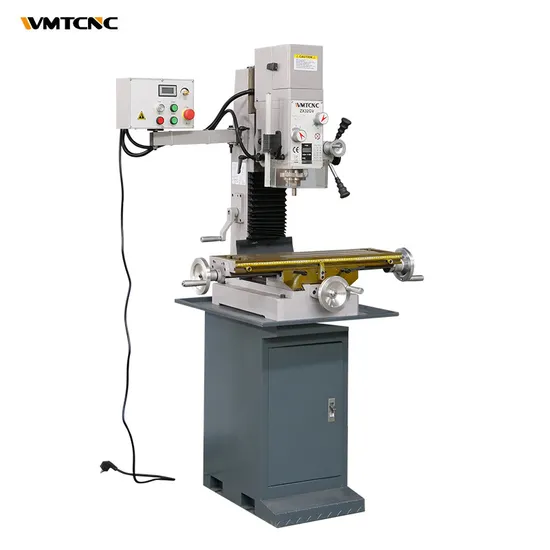

WMTCNC bench manual milling and drilling machine ZX32GV main features:
1. High precision grinding all steel spindle.
2. High strength with square column.
3. Good strength gear grinding, low nosie.
4. Headstock tilts left and rigth.
5. Wide electrical box, easy operation.
6. High precision manual feeder.
7. Depth ruler, easy operation and read.

Specification	ZX32GV
Max. drilling capacity	32mm
Max. tapping capacity	16mm
Max. face milling capacity	63mm
Max. distance from spindle center to column	214mm
Max. distance from spindle center to table	400mm
Table size	700x190mm
Spindle taper	MT3/R8
X-axis travel	350mm
Y-axis travel	230mm
Z-axis travel	380mm
Spindle travel	75mm
T-slot size	12mm
Spindle speed range (50hz)	40-3000rpm
Swivel angle of headstock	±45°
Column size	150×130×690mm
Base size	542×340mm
Motor power	750w
N.w/G.w	185/215kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
