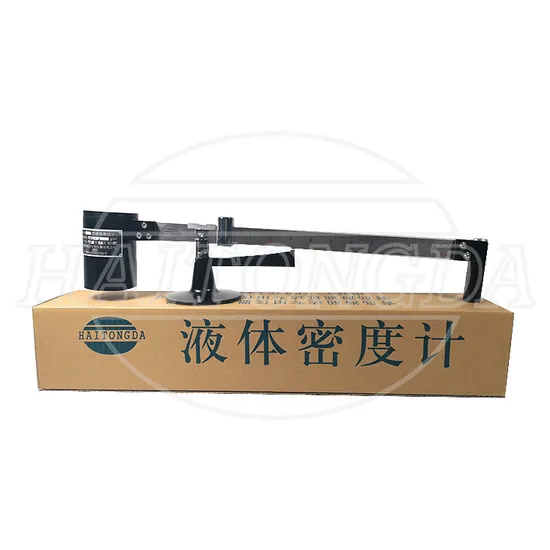

Model YM Mud Balance/Densimeter With Plastic Cup

Product Description

1,Introduction
The Model YM Mud Balance provides a simple, practical method for accurate determination of fluid density.
It is one of the most sensitive and accurate field instruments available for determining the density or weight-per-unit-volume (specific gravity) of drilling fluids.
An outstanding advantage of this Mud Balance is that the temperature of the sample does not materially affect the accuracy of readings. A high impact plastic case protects the balance during transport and provides a secure base in its working position.
The Model YM Mud Balance is constructed with an easy-to-read beam graduated into one scales: g/cm3 (grams per cubic centimeter)
Qingdao Hai Tong Da density balances meet all the requirements of the API standard procedures for testing water base drilling fluids, oil base drilling fluids and oil well cements.
2,Type Specification

No.	Name	configuration
YM-1	Mud Balance	Plastic liquid cup
YM-2	Mud Balance	Plastic liquid cup
YM-3	Mud Balance	Plastic liquid cup
YM-5	Mud Balance	Plastic liquid cup
YM-7	Mud Balance	Plastic liquid cup

3,Technical Specification

No.	Model	Measuring range	Measuring accuracy	Cup capacity	Net weight / Gross weight	Overall dimensions	Packing size
1	YM-1	0.96-2.0g/cm3(8.0-171b/gal)	0.01g/cm3 (0.1lb/gal)	140 ml	0.7kg/0.9kg	500×110×110mm	550×100×105mm
2	YM-2	0.96-2.5g/cm3(8.0-211b/gal)			0.72kg/0.88kg	500×110×110mm	550×100×105mm
3	YM-3	0.96-3.0g/cm3(8.0-251b/gal)			0.88kg/1kg	540×110×110mm	590×100×105mm
4	YM-5	0.7-2.4g/cm3(5.8-201b/gal)			0.82kg/0.98kg	540×110×110mm	600×105×105mm
5	YM-7	0.1-1.5g/cm3(0.8-131b/gal)			0.8kg/0.96kg	490×110×110mm	540×100×105mm

HOT SALE:
Certification:
Team:
Workshop:
Warehouse and transportation:
FAQ:
Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;
For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
Contact us:
Qingdao Haitongda Special Instrument Co.,Ltd.



Add:No.320, Jiushui East Road,Licang district,Qingdao City,Shandong Province,China(266100)

---
