Basic Info.
Type
Concrete Mixing Plant
Machining Process
Concrete Production Line
Certification
ISO9001: 2000, CE
Color
as Per The Requirement of Client
Control System
Computer Control
Concrete Production Capacity
35m3/H
Concrete Discharging Height
1.3m
Concrete Foundation
No Need
Transport Package
Container
Specification
12.3m*7.3m*4.3m
Production Capacity
10 Sets/Month2
Packaging & Delivery
Package Size
1150.00cm * 220.00cm * 250.00cm
Package Gross Weight
13500.000kg
Product Description

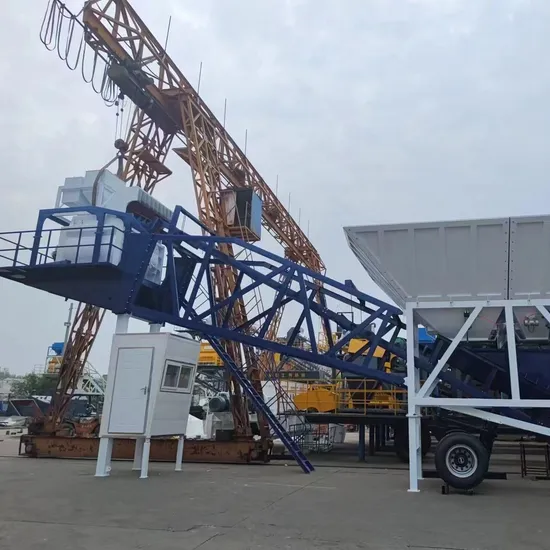

Pictures of our 35m3/h mobile concrete batching plant
Mobile horizontal cement silo
Product Description
Mobile concrete batching plant is specially designed for projects that we need to change work sites from time to time. It is very easy to be disassembled and moved to another work site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including cement silo. So it is very easy to install on a new work site; You just need a car to tow it to the new work site, place the machine in the right position and connect the cables, then you can use it. Usually, we can finish the installation within 3 days;
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have now is from 20m3/h to 100m3/h. Welcome to contact us for details and quotations.
Product Parameters
1. YHZM series of mobile concrete batching plant
1) Picture
2) Specification
| Model | YHZM20 | YHZM30 | YHZM60 | YHZM100 |
| Production capacity (m3/h) | 20 | 30 | 60 | 100 |
| Concrete mixer | JZM500 | JZM750 | JZM1500 | JZM2000 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Control system | Panel | Computer | Computer | Computer |
| Total power (kw) | 42 | 46 | 67 | 77.5 |
| Total weight) | 12 | 13 | 14.5 | 26 |
3)Features a. It's no need to make concrete foundation, we can save much time, cost and labour work;
b. Easy to install. We usually need 3 days to finish the installation;
c. It is cost-saving. Compared with other mobile concrete batching plant, YHZM type is much cheaper;
d. The mixer is drum type concrete mixer;
e. The cement silo is horizontal type, no need foundation;
f. The concrete discharging height is 1m; we need to use a belt conveyor or we can make a slope to increase the height to enable concrete transit mixer to collect concrete.
2. YHZS series of mobile concrete batching plant
1) Pictures
2)Specification
| Model | YHZS25 | YHZS35 | YHZS50/60 | YHZS75/90 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2% | ±2% | ±2% | ±2% |
| Cement weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Water weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Additive weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Total weight (T) | 14 | 22 | 26 | 29 |
| Total power(kw) | 60 | 72 | 92 | 102 |
| Control system | Panel | Computer | Computer | Computer |
3)Features a. we need to make concrete foundation;
b. the concrete mixer can be twin-shaft mixer, pan mixer and planetary mixer;
c. the cement silo is vertical type, we need to make big concrete foundation;
e. the concrete discharging height is 4.1m which is easy for concrete transt mixer to collect concrete.
3. NYHZS series of mobile concrete batching plant
1). Picture
2)Specification
| Model | NYHZS25 | NYHZS35 | NHZS50/60 | NYHZS75/90 |
| Theoretical production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2% | ±2% | ±2% | ±2% |
| Cement weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Water weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Additive weighing accuracy (%) | ±1% | ±1% | ±1% | ±1% |
| Total weight (T) | 12 | 20 | 21 | 24 |
| Total power (T) | 60 | 72 | 72 | 87 |
| Control system | Computer | Computer | Computer | Computer |
3)Features a. It's no need to make concrete founcation, easy to install and move to other job sites;
b. the concrete mixer can be twin-shaft mixer, pan mixer and planetary mixer;
c. the cement silo is horizontal type, no need foundation;
e. the concrete discharging height is 1m; we need to use a belt conveyor or make a slope to increase the height to enable concrete transit mixer to collect concrete.
Certifications
CE certificate
>>
