47L 230bar ISO Tped High Pressure Vessel Seamless Steel Industrial Medical Oxygen Gas Cylinder

US$50.00-100.00 100 Pieces (MOQ)

Basic Info.

Model NO.
47L
Material
34CrMo4
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Model No.
ISO9809
Water Capacity
47L
Outside Diameter
232mm
Working Pressure
230bar
Test Pressure
345bar
Weight
51±1kgs
Cap
Common Cap or Tulip Cap or Semi-Circle Cap
Package
Pallet or Bulk
Specficition
ISO/Tped
Wall Thickness
5.8mm
Base Profile
Concave
Neckring
with
Bottom
Concave
Color
Customize
Inlet Thread
Customize
Transport Package
Netting/ Pallet
Specification
232*1425
Trademark
YA
Origin
Linyi Shandong
HS Code
7311009000
Production Capacity
20000PCS/Month

Product Description

1.Product description
Water Capacity 47L
Cylinder Weight 52kg
Outside Diameter 232mm
Service Pressure (Bar) 230bar
Test Pressure(Bar) 345bar
Certification TPED/ISO9809
Head Protection Tulip Cap, Common Cap
After-Sales Service Provided Overseas Third-Party Support Available
Brand Name YA

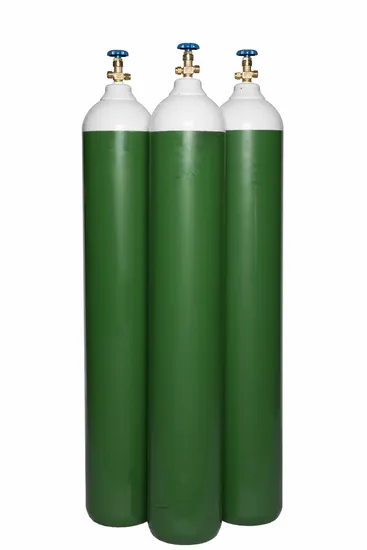

2.Product picture
3.Company Profile
A Company You Can Trust:
Shandong Yongan Special Equipment Co., Ltd. is a professional manufacturer of industrial oxygen cylinders, medical oxygen cylinders, carbon dioxide bottles, argon bottles, nitrogen bottles, hydrogen bottles, sulfur hexafluoride gas cylinders and other gas cylinders.
The company is located in the industrial park of Hedong District, Linyi City, Shandong Province,China. It covers an area of 200 acres and a building area of 56,000 square meters. It currently has more than 1000 employees, including 100 engineering and technical personnel, and certain number of professional and technical personnel who are capable of physical and chemical testing, non-destructive testing, material analysis, and Inspection and test of mechanical properties.
The company 's registered capital is 110 million RMB and fixed assets is 200 million RMB. Depond on the core technology, export access, industry voice and cost control, quality management and other advantages, we can produce 5 million gas cylinders per year, the largest manufacture of gas cylinder in China.
The company has the qualification to produce steel seamless gas cylinders and welded gas cylinders. The products produced have passed the CG5099, ISO9809-1, ISO9809-3 quality certification, and passed the strict certification of TUV, an international authority. Our products have won praise from customers worldwide.
And our product have been exported to Euro Countries, such as Romania, Bulgaria,Russia. South America: such asArgentina, Ecuador, Brazil, Bolivia, Africa: Ethiopia, Ghana, Nigeria, South Africa,Asia: such as Vietnam, Malaysia, Myanmar, India, Saudi Arabia, etc. We are making great efforts to achieve this win-win situation and sincerely welcome to join us.At Last: Welcome all the friends to Visit our company.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet the quality requirement of customers. In addition, all of our products have been strictly inspected before shipment. Our products have attained the TPED/ISO/TUV/SGS certification.
4.Advantages we have:
1. Original Manuacturer: MY Company have professional equipments for gas cylinders, medical oxygen regulators, and more than ten years experience in manufactureof gas cylinder
2. Large Output capability: We have the capability to produce more than 5000, 000pcs of Gas Cylinders per year.
3. Cost Advantages: We have cost advantage because our professional and scale economy;
4. Series: We have different series and models, for different standards in different countries;
5. Small order can be acceptable: M. O. Q. =100 PCS;
5.Our Services:
We supply high quqlity with good price gas cylinders.We are prepared for your demand and question at any time. Please feel free to contact me if you have any interest or question about our products.
6.Packaging & Deliver:
Packaging Detail: Packed By Pallets or Netting
Delivery Detail: 25 days
7.FAQ:
1. What is the capacity of this cylinder?
47L
2. What is the delivery time?
20-30 Days once deposit paid and spections confirmed.
3. Do you have any protection for the head of the cylinder?
Yes, each cylinder is equiped with a tulip cap OR common cap which can make sure the safety of the product during the transportation.
Type Outside
diameter
(mm)
Water
capacity
(L)
Height
(mm)
Weight
(kg)
Service
pressure
(bar)
Test
pressure
(bar)
Design wall
thickness
(mm)
Material
ISO232
(TPED)
232 38 1110 40.2 230 345 5.8 34CrMo4
40 1165 42.1
45 1295 46.3
46 1320 47.1
46.7 1335 47.6
47 1345 48
50 1425 50.6
