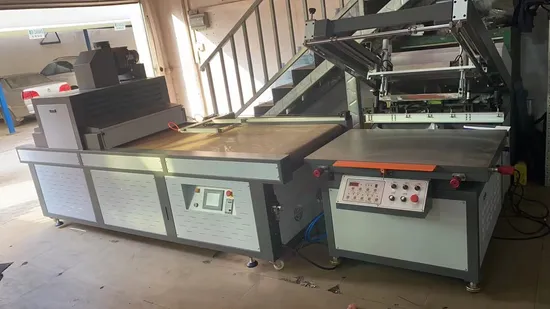

Vertical Pneumatic Screen Printer Machine with UV Curing Dryer System Kit

Product Description

vertical pneumatic screen printer machine with uv curing dryer system kit
Product Description Application area:
All kinds of plane printing of soft& thin substrate materials, such as PET film, poly dome, flexible printed circuit, ceramic decal and so on.
this machine loading by hand, then automatic screen printing, with mechanical arm can unloading the product from screen printer to UV curing machine.
Application Scope:
- The major parts are imported components, so as to ensure the precision of the machine and the quality stability. This machine is widely used in printing of cigarette, wine, gifts, and cosmetics package, printing of trademark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card.
The main component configuration:
Altivar------------------------------ Schnei-der
intermediate relay ------------------ Schnei-der
AC contactor ----------------------- Schnei-der
air cylinder -------------------------- Xintaiming
Motor drive belt ---------------------- JP Samsung
electromagnetic valve ----------------- Korea YSC
linear guide rail----------------------- Taiwan HIWIN
Suction pump ------------------------ Shanghai FULI
knob -------------------------------- Shanghai Re-gong Electric
automatic flatbed screen printing machine(Tip: We can manufacture according to customer's requirement.)

Model	YK-6090PUV	YK-70100PUV	YK-90120PUV
Workbench Area (mm²)	700*1000	800*1100	1000*1300
Max Print Area (mm²)	600*900	700*1000	900*1200
Max Screen Size(mm)	900*1200	1000*1300	1200*1500
Min Screen Size(mm)	450*550	550*650	650*700
Frame Lift Height (mm)	300	300	300
Operation Air Pressure (Mpa)	0.3-0.5	0.3-0.5	0.3-0.5
Air-Consumption(0.6Mpa)(L/pcs)	13	13	13
Source Power (kw)	2.3	2.3	2.3
Rated Power (V/Hz)	220/50	220/50	220/50
Max Table Height(to floor)	820	820mm	820
Printing Speed (pcs/h)	2000	2000	2000
Dimension (mm)L×W×H	1500*1200*1250	1600×1350×1280	1800*1400*1300
Weight (kg)	410	480	550
Thickness of printing stock	0-100mm	0-100mm	0-100mm

UV dryer(Tip: We can manufacture according to customer's requirement.)

Model	YK-750UV	YK-1000UV
Conveyor belt width(mm)	750	1000
Power(V/Kw)	380V/12.5KW	380V/12.8KW
Conveyor speed(m/min)	0-25	0-25
UV light power(kw)	5.6kw; 2 set	5.6kw; 2 set
Overall dimensions(mm)L*W*H	2500(or4000)*980*1350	2500(or4000)*1230*1350
Weight(kg)	300	350

Detailed Photos
Company Profile Shenzhen Eco Printing Co.,LTD was established in 1999,with 20 years experience with a industry factory of research and development, production, sales, service integration of printing equipment ,which specializing in Pad Printing Machine,Screen Printing Machine,UV Curing Machine,IR Hot Dryer tunnel,Hot Stamping Machine,Flame Treatment Machine and Screen & Plate UV Exposure Machine etc. We passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard. we are the gold membership of made-in-china and got a huge credit all the world . There are customers from 98 countries to visit our factory and we had a good cooperation.
Certifications We passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard.
