Power Ms-200c Digital Inverter Gas-Shielded MIG MMA TIG IGBT Multifunction Welder MIG Welding Machine

Product Description

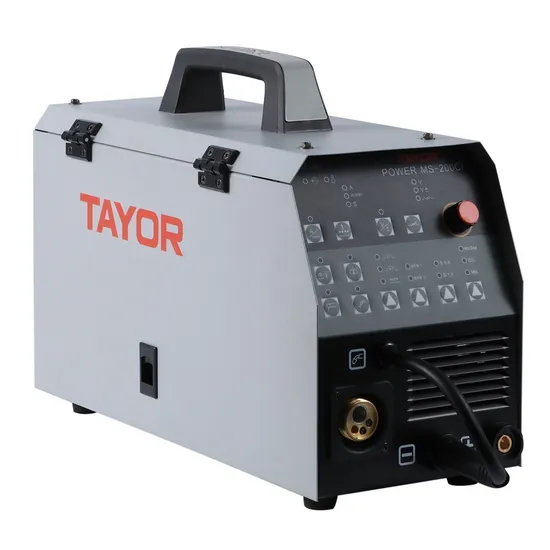

POWER MS-200C Digital inverter gas shielded welding machine from TAYOR
Features A unique digital control mode is adopted to digitally control the voltage and current waveforms of the welding machine, and the welding performance is good (good welding arc starting, stable arc starting, and less spatter) Built-in expert database and unified control mode for users to easily adjust welding parameters Adopting the full-bridge inverter topology structure, the welding machine is reliable and stable Unique appearance design, reasonable structure matching, exquisite appearance, beautiful Closed wire reel protection form, maximum dust and rust prevention
Functions
CO2/MAG welding
MMA welding
Technical Parameter

Model	POWER MS-200C
Input Power (V)/Frequency (Hz)	1~AC220V±10% / 50/60
Rated Input Current (A)	37.5
No-load Voltage (V)	69
Output Current Adjustment Range (A)	40~200(MIG) 20-200(MMA)
Output Voltage Adjustment Range (v)	16~24, 20.8~28
Duty Cycle @ 40°C (%)	25
Efficiency (%)	≥76
Insulation level	H
Enclosure protection level	IP21S
Dimensions (mm)	630×257×463
Weight(kg)	22
