CNC Durable Drilling Machine for Steel Angle

Product Description

CNC Durable Drilling Machine for Steel Angle
1.Product feature:
1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, automatic unload conveyor and corresponding hydraulic station, electric cooling system.
Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
2. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.
3. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid withdrawing of spindles all are finished automatically.
4. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.
5. All marking and drilling in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.
6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.
7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
8. With self-diagnosis failures function.
2.Special advantages: Space between our character groups is larger, which can accommodate bigger size character. Enclosed marking unit. It is more stable and safe. And it will prolong the life of marking unit. Minimum End piece length to minimize scrap. Machine suitable to Indian condition like motor of 415 volts, 50 Hz. We can provide chiller for hydraulic tank oil cooling to prevent damage of cylinder part due to oil temperature (optional but can be done on client request).
POWER: Three phase four wire systems
AC Voltage: 380V or 415V for India
Fluctuation of voltage: ±5%
Frequency: 50Hz
Local working temperature: 0-40ºC
Specifications:

Model	JGZ3635
Angle size(mm)	140х140х10~360х360х35
Marking force(kN)	1030
Max. length of blank(m)	14
Max. length of finished(m)	14
No. of drill on each side(piece)	3
No. of character group(piece)	1
No. of character in each character size(piece)	15
Character side(mm)	14×10×19
Range of back mark (mm)	50-220 (stepless)
CNC axes(piece)	3
Spindle rotation speed(r/min)	180-560,Transducer stepless adjustment
Feeding speed of angle(m/min)	40
Diameter of drilling(mm)	Ф17.5~Ф40
Stroke of Spindle(mm)	180
Processing precision	Accordance with GB2694-81
Programming mode	Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions (mm)	32000×7500×3150
Gross weight of machine(kg)	Approx.16800
Total power(kW)	35

3.Main Components List:

No.	Name		Manufacturer
Main Electric Components
1	PLC		Japan YOKOGAWA
2	Servo Motor		Japan YASKAWA
3	Servo Driver
4	Main motor		ZHENG HUA
5	Transducer		INVT
6	Business Computer		China Lenovo
7	Photoelectric Switch		AUTONICS
8	Proximity Switch		AUTONICS
9	Push button		German SIEMENS
10	Indicator light		German SIEMENS
11	Contactor switch		German SIEMENS
12	Stroke Switch		Taiwan TEND
Main Hydraulic Pressure Components
1	Hydraulic Valves		Italy ATOS
Main Pneumatic Components
1	Carriage	Up Cylinder	Taiwan AirTAC
2		Clamp Cylinder	Taiwan AirTAC
3		Electromagnetic Gas-valve	Taiwan AirTAC
4	Unload Conveyor	Overturn Cylinder	Taiwan AirTAC
5		Electromagnetic Gas-valve	Taiwan AirTAC

4.Spare parts list:

No	Name	Material	Qty.	Remark
1	Upper clamping jaw	T10A	2	Including installed in machine
2	Nether clamping jaw	T10A	2	Including installed in machine
3	Character box	T10A	2	Including installed in machine
4	Characters	T10A	2 set	Including installed in machine
5	Proximity switch	Normal open	1	AUTONICS
6	Proximity switch	Normal close	1	AUTONICS
7	Proximity switch		1	AUTONICS
8	Travel switch	TZ-8104	1	Taiwan TEND
9	Photoelectric switch		1	AUTONICS
10	Combination pad		1 sets	GB982-77
11	Reducing sleeve	Φ17.5~Φ40	1 set
12	O ring	Exported famous brand	1 set	GB1235-76
13	Tools with equipment		1 set
14	Standby paint		1 pail
15	Operation Manual & Attached Drawings		2 sets

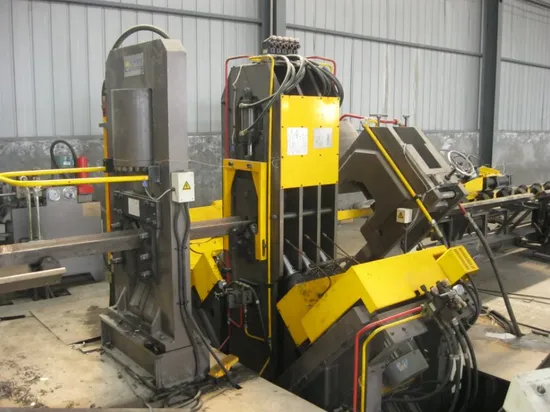

5.Product Photos
6.Company Profile
Shandong Yudong Sunshine Machine Co., Ltd belongs to Sunshine Group, which is a stock company. The stock number is 100817.
Sunshine Group established in 2006, the main products are the CNC drilling machine, CNC punching machine, CNC band sawing machine, CNC shearing machine, CNC cutting machine, CNC marking machine, CNC notching machine used for processing steel plates, steel angles, steel channels, steel flat bars and steel beams.
Based on our good machine quality and good service, Sunshine already installed our CNC machines to more 50 coutires. Sunshine has oversea service center in India, Indonesia, Vietnam and Russia.
Sunshine has professional technical engineers team which with more than 20 years for these kind of machines, also has professional international marketing team, service team to all of the oversea market.
Yudong Sunshine can provide 7*24 after sale service to all customers by on line. We will establish wechat group, whatsapp group between customer engineers and our engineer, and can provide on line service at any time if customer need. Also, we will provide to door service from our international service center of China, India, Indonesia and Vietnam.
Based on our more than 20 years experience, good machine quality and good service, hope can have your machine inquiry and have a good cooperation with all customers from all countries.
7. Certificates
8. FAQ
Q: Are you trading company or manufacturer ? A: We are professional manufactutrer, have in this line about 10 years.
Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 30-60 days if the goods are not in stock.
Q: What is your terms of payment ? A: Payment 30% T/T in advance ,70%balance before shippment.
If you have another question, pls feel free to contact us

---
