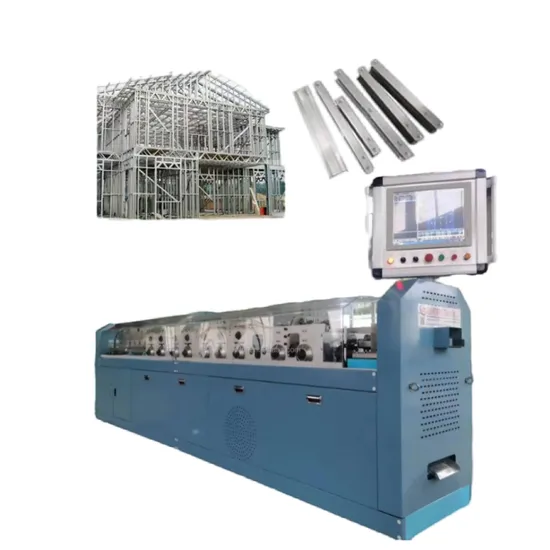

Zkrfm New Tape Light Gauge Steel Framing Machine Light Keel Roll Forming Machine

Product Description

Product Description

Full Automatic Light Gauge Steel Roll Forming Machine
Product Parameters

No.	Item	Specification
Main Machine	Raw Material	Pre-painted Steel Coil, Galvanized Steel Coil
	Feeding Thickness	0.8-1.2mm
	Machine Body Thickness	16mm steel plate
	Solid Shaft Material	High grade 45# steel , key-way treatment & polished
	Shaft Diameter	70mm-0.01mm
	Roller Station	20 roller stations
	Roller Material	High grade 45# steel with CNC process and key-way
	Coder Brand	Shanghai/Siemens/Omron
	Line Speed	2-3m/min
	Transfer Method	Sprocket & Chain , more stable and stronger
	Power	7.5KW Servo motor
	Dimension of the Machine	8.0M*1.4M*1.3M
	Weight	About 6500KGS
Cutting system	Type	Electrical motor for cutting
	Width Capacity	As drawing
	Cutting Blade Material	Cr12Mov, quenching
	Hardness	55-58HRC
	Cutting Tolerance	+/- 1mm
	Cutting Operating	Stop to Cut
Control Machine	Type	Delta/Siemens PLC controlled
	PLC brand	Delta/Siemens PLC controlled
	Frequency Converter	Delta/Siemens PLC controlled
	Touch Screen	7 inches

5T Manual Decolier For Free Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar.
The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine
Feeding Device 1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the
machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the
steel coil go into the machine smoothly.
Roll Forming And Transmission Device
1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft
stablely
3.gear and double chain,stable
transducer and touched screen Encoder brand:Omron
Electrical components:
Operating language:English and Chinese(or as requested)
You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
Certifications
other customer
Company Profile


Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

---
