Plastic Granules PP PE Pet Mixing Storage Tank Material Plastic Color Mixer

Product Description

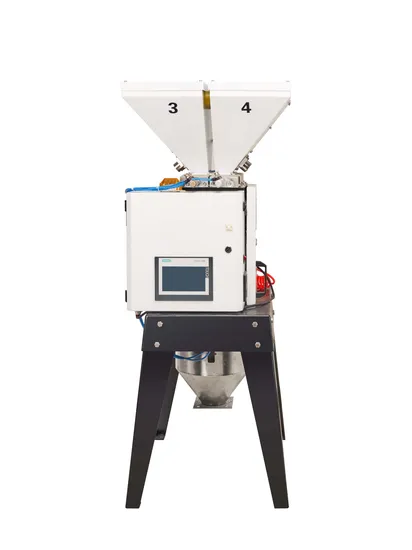

Product Overview Automatic batching and weighing system of automatic masterbatch metering mixer for weighing mixer of manufacturerThis series of weighing mixer is suitable for the occasions where many kinds of raw materials are needed for plastic injection,extrusion or hollow molding, and they are accurately mixed according to the weight ratio. The controller of this series of products adopts Siemens PLC control system in Germany and adopts advanced batching algorithm, which can automatically calibrate every time it is turned on to ensure the accuracy, and the operation is easy to learn and convenient.FEATURES AT A GLANCE
principle of operationWhen the machine starts to work, the metering valve of the main material barrel is opened according to the set weight value and
the time value calculated by the metering valve. When the blanking time arrives, the metering valve is closed to detect the weight
of the weighing pan. If it is within the error range of the set blanking value, the next drum is switched for metering, and so on
until the blanking of each drum is completed. After discharging, the weighing tray valve is opened, the raw materials fall into
the mixing barrel, and the agitator is started to stir until the set stirring time is reached, and the agitator stops, and the
baffle plate is manually opened or the discharging valve is automatically opened to make the stirred raw materials fall into the
injection molding machine or the storage barrel, and so on.PRODUCT SPECIFICATIONS

model	Anverage throughput (KG/Hour)	BatchCapacity (KG)	Total power(KW)	Main material (%)	Additive ratio (%)	Material hopper (L)	Mixing chamber (L)
CGB-50	50	0.6	0.12	5-100	0.5-10	18	6
CGB-100	100	1.2	0.12	5-100	0.5-10	32	20
CGB-200	200	2.2	0.25	5-100	0.5-10	32	20
CGB-400	400	4.5	0.25	5-100	0.5-10	45	20
CGB-600	600	8	0.55	5-100	0.5-10	70	40
CGB-800	800	8	0.55	5-100	0.5-10	100	40
CGB-1200	1200	12	1.5	5-100	0.5-10	130	80
CGB-2000	2000	20	1.5	5-100	0.5-10	160	80
CGB-2500	2500	25	1.5	5-100	0.5-10	180	100
CGB-3000	3000	30	3	5-100	0.5-10	230	180

Our factory
FAQ1. What is the warranty of your machine?
R: 1 years, any product itself question,you can contact with us.
2. What is the material of your machine , is oil free?
R: our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free.
3. How to operate your machine?
R: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do
according to your voltage, so at first , you need to tell us your voltage and phase,its important.
4. You are trading company or manufacture?
R: We are manufacture, we can provide long-term supply with fast speed.
5. How to contact with you?
R: You can send messages to me directly by ****** trade manager, or add me like below

---
