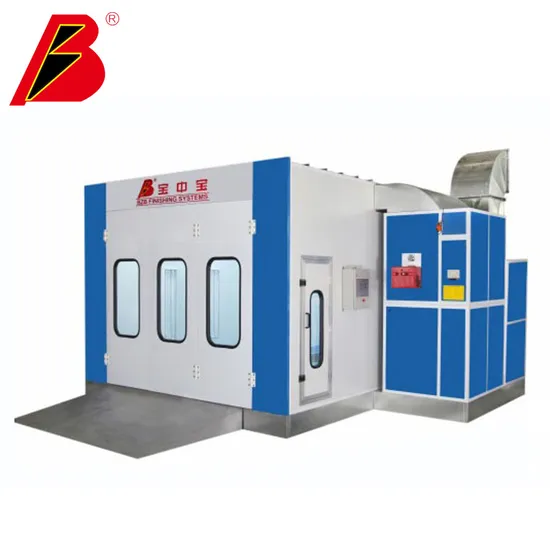

Auto Paint Car Baking Booth Spray Room Brand Spray Booth Microcomputer Control Automotive Paint booths
| Cabin System | Wallboard | EPS (epispastics polystyrene)Colorful Steel Skin Boards,50 mm Thick, Tongue & Groove Style, Compound Construction, Anti-flame and Heat-Insulation,the thick of colorful steel skin board is 0.326mm. Galvanized Roof Panel | |
| |
| |
| Basement | Galvanized Steel Sheet and Square Steel Pipe assembling, Two rows of grid &three rows of embossed plate. Three embossed steel ramps. | |
| |
| Ramp | Three Ramps, Embossed Steel Plates. | |
| Air Intake and Exhaust System | Inhaling Ventilator | Model: YDW 4.5AL1 | Exhaust Ventilator | Model: YDW 5.6S | |
| Blowercapacity:24000m3/h | Blower capacity:15000m3/h | |
| Pressure:815Pa | Pressure:810Pa | |
| Rolling speed: 900rpm | Rolling speed:900rpm | |
| Power: 4kw | Power: 7.5kw | |
| Quantity: 2 sets | Quantity:1set | |
| Air Volume: 24000m3/h; Air Speed: 0.35m/s | |
| Air Purification System | Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. It's Filtering Rate Reaches 98%. TSP≤1.4mg/m³. | |
| |
| |
| Heating System | Burner | Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 20N Damp Motor | |
| Heat Energy Converter | Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85% | |
| 20N Damper from Switzerland | |
| Max Temp:80.c, Heating Time:6-8min(20-60c), Fuel Consumption: 6-8kg/vehicle | |
| Light System | Ceiling Light: 32 pcs 36w Lamp; Bottom Light: 16 pcs 36w Lamp, 1000 Lux | |
| Controlling System | Micro-Computer Programmed Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm | |
| |
| Environmental System | Multi-Layer fiberglass, active-carbon | |
| |
This car spray booth gives stable working performance. It can provide the car paint spraying process with the desirable workspace. Our product is considered as the most ideal model for the auto repair shops of our customers from home and abroad. It is usually applicable for both car repair factories and common car 4S shops in those countries or regions where the environmental protection is demand.
