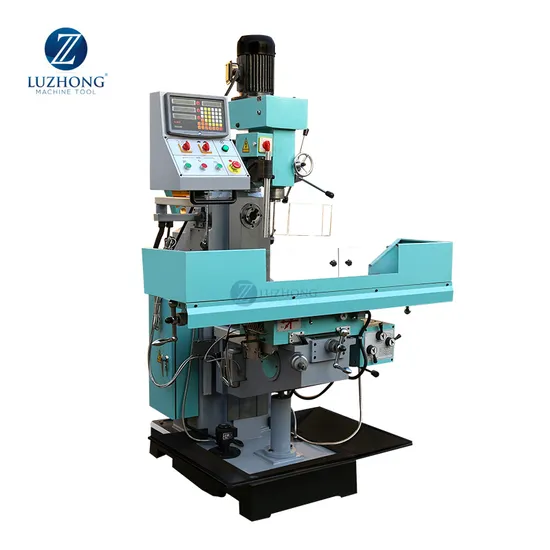

Universal Horizontal Vertical Knee Type Drilling And Milling Machine (ZX6350D)

Product Description

Universal Horizontal Vertical Knee Type Drilling And Milling Machine (ZX6350D)
Product Description
The main performance characteristics: 1.Gear transmission for vertical/hozizontal milling head 2.X/Y axis auto feed,Z axis manual feed 3.Headstock swivel +/-45° 4.Guide way with sparking quenching Product Parameters

Product main technical parameters:

Specifications(mm)	ZX6350D
Max. drilling dia.(mm)	50
Max. end milling width(mm)	100
Max. vertical milling dia.(mm)	25
Max.boring dia.(mm)	120
Max. tapping dia.(mm)	M16
Distance from spindle nose to table surface(mm)	80-460
Spindle taper	MT4
Horizontal Spindle taper	ISO40
Spindle speed range(r.p.m)	36-1526(V) 40-1300(H)
Spindle travel(mm)	120
Table size(mm)	1200×280 Optional: 1500x280
Table travel(mm)	600×280 Optional: 1000x280
Table feed speed(mm/min)	X/Y:22-555
Overall dimensions (mm)	1500×1600×2200
Spindle motor power (kw)	1.5/2.2(V) 3(H)
Machine weight (kg)	1350/1450

Detailed Photos

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
