Product Details
Product Description
Product Description

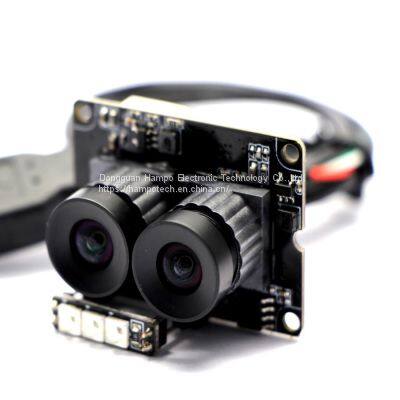

WDR Dual Lens Camera Module Dual Camera Module WDR Camera Module
Dual Camera Module Description
003-0511 is a dual lens USB camera, two Synchronized camera, 3MP+1.3MP camera module at 30 fps high frame rate. This tiny 38mmx28mm camera board can be installed in any machine of the ticket gate, face recognition, bioassay, and other machine vision application.
Features:
1. Dual Lens AI Camera & Bioassay: This is a binocular camera module which features dual AR0230 & RX2719 cameras board, 3MP+1.3MP for two cameras. It is suitable for AI vision applications like depth vision and stereo vision.
2. WDR USB Dual Lens Camera Module: WDR dual lens usb camera module use AR0230 image sensor with a 100db wide dynamic rage which is the high standard in terms of image quality and sensitivity performance. The image sensor helps to produce sharp images effectively. 3MP+1.3MP usb camera module with 89degree megapixel lens, the cameras module can meet most capturing and video requirements.
3. Plug & Play: Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).
4. Have a clear image on backlight: It have a clear image even if you take the image under backlight.
5. Wide Compatibility: This USB camera widely compatible with Windows Win XP/Vista/Win7/Win8 /Win10, Linux with UVC
SPECS
Camera
Sensor: AR0230+RX2719
Sensor Size: 1/3”
Resolution: 2048*1520 & 1280*960
WDR: 100DB & 83.5DB
Output: MJPC/YUV
Frame Rate: 30fps
Lens
FOV: D=89°
TTL: 15.29mm
Construction: 2G2P
Mount: M12*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 500mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 38*28mm
Dual Camera Module Applications
Face recognition;
ATM;
Access control;
Bioassay;
Lens Options
Model No.
| 7021
| 6192-2A7
| 7021-D1
| 6205-2A6
| 6205-2A6
|
|
|
Optical Format
| 1/2.7”
| 1/2.7”
| 1/2.7”
| 1/2.7”
| 1/2.7”
|
|
|
EFL
| 3.0
| 3.0
| 3.0
| 2.9
| 2.9
|
|
|
BEL
| 3.46
| 4.49
| 3.46
| 4.34
| 4.34
|
|
|
Construction
| 2G2P+IR
| 2P3G+IR
| 2G2P+IR
| 3G2P+IR
| 3G2P+IR
|
|
|
F/No
| 2.5
| 2.4
| 2.5
| 2.4
| 2.4
|
|
|
FOV1/2.7”
| 95/86/55
| 96/88/57
| 95/86/55
| 98/89/57
| 98/89/57
|
|
|
FOV1/3”
| 89/76/60
|
| 89/76/60
|
|
|
|
|
IR Filter
| 850IR Filter
| 650IR Filter
| 650IR Filter
| 650IR Filter
| 850IR Filter
|
|
|
MOD
| M12*P0.5
| M12*P0.5
| M12*P0.5
| M12*P0.5
| M12*P0.5
|
|
|
