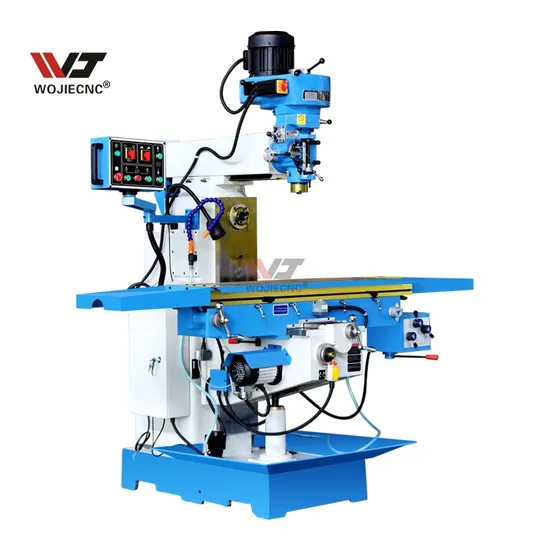

Heavy Duty X6332 Universal Milling Machine Drilling Milling Machines

Product Description

Product Description
Universal milling and drilling machine is a kind of general metal cutting machine tool.Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Parameters

Specifications	Units	X6332
Table size	mm	1370×320
Table travel	mm	810/ 300/400
T slot(number-width-pitch)	mm	3-14-70
Spindle taper		ISO40 7:24
Spindle speed range	rpm	50HZ:65-4500(16 ) 60HZ:80-5440
		Optional:variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15(3 steps)
Distance between spindle nose and table surface	mm	140-540
Distance between spindle axis and table surface	mm	0-400
Main motor power	kw	2.2(V)3(H)
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	2000
Overall dimension	mm	2200x1820x2350

Detailed Photos

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
