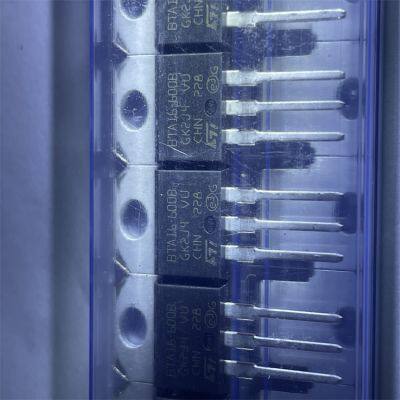

BTA16-600BWRG STMicroelectronics Triacs 16 Amp 600 Volt

Product Details

Product Description

Product Description
Factory
BTA16-600BWRG
Manufacturer: STMicroelectronics
Product Category: Triacs
RoHS: Details
Series: BTA16
Non Repetitive On-State Current: 168 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
On-State Voltage: 1.55 V
Holding Current Ih Max: 50 mA
Gate Trigger Voltage - Vgt: 1.3 V
Gate Trigger Current - Igt: 50 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220-3
Packaging: Tube
Brand: STMicroelectronics
Current Rating: 16 A
Product Type: Triacs
factory pack quantiy: 1000
Subcategory: Thyristors
Tradename: Snubberless
Unit Weight: 0.211644 oz

---
