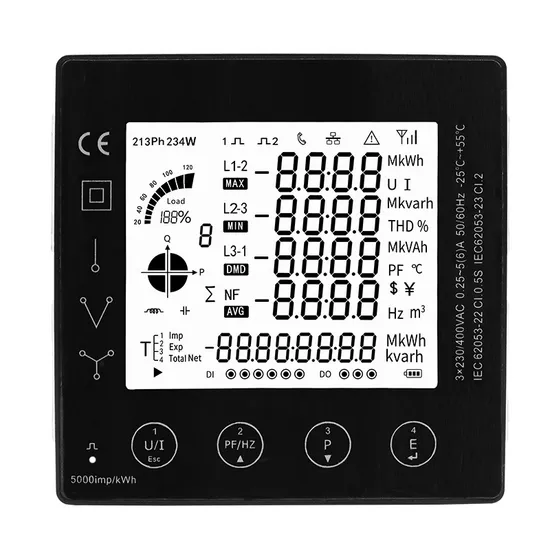

Multi-Rate RS485 Modbus RTU Electricity Meter Multi-Function Power Panel 3 Phase Energy Meter

Product Description

Please note that PAC5000 has no digital input multi-rate and relay output functions!!! Order PAC5010 if you need multi-rate function!!! If you need another two meters, please contact me!!! The maximum current of this meter is 5A, if you need a larger current, please use a suitable current transformer!!! Description PAC5000 series products are the multi-function power analysis instrument for collection and analysis of electric parameters, used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in high voltage intelligent power grid. This series of products that can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, total harmonic distortion, individual harmonic distortion, unbalance factor, crest factor, etc. This series of products also provide a variety of electrical energy parameters measurement, such as two-way active energy, reactive energy, four-quadrant energy, monthly and daily energy consumption statistics. PAC5000 series products can support in the 1P2W, 2P3W, 3P3W and 3P4W grid environment analysis of electric power parameter measurement, and at the same time providing multi-channel digital input/output interface, and SOE function, is suitable for real time power monitoring and control system, the energy consumption management system, industrial monitoring site using a variety of applications such as environment, has the multi-function, high stability and long life characteristics.
Characteristics
1,Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor,phase Angle, etc.
2,Provides a variety of analytical parameters, such as total harmonic distortion (THD) and Individual harmonic distortion (IHD) of voltage/current, voltage/current unbalance factor, voltage crest factor, current K factor, etc. The Sub-harmonic component is
maximum supported to the 63rd.
3,External current transformers of output types such as 5A/100mV/100mA are supported, and direct access of Rogowski coil is also supported. With the current transformer reverse connection correction function.
4,Support external voltage transformer access, input voltage minimum support 30V.
5,Embedded installation, product panel size is 96*96mm.
6,Plug and pull type connection mode, convenient construction connection.
7,Liquid crystal display with backlit, backlight lighting time adjustable.
8,LCD refresh time is 1 second, support manual or automatic scroll display (configurable).
9,Support multi - channel digital input and output interface.
10,Two pulse optocoupler output interfaces are pulse 1 and pulse 2 respectively. The output parameter can be set for pulse 1,while the fixed pulse 2 represents the total active energy of the secondary side, which cannot be set.
11,Support RS485 communication function, baud rate up to 38400bps, support Modbus RTU, MBus protocol. Company Profile Wenzhou Taiye Electric Co.,Ltd. has be committed to provide full-service for industrial automation control since its founded. We provide users with advanced technology and quality service for a long time. Our company is specialized in design, production and sales of digital instruments (Ammeter, voltmeter, frequency meter, power factor meter, multifunction meter,Wifi Meter ),current sensor, power transformer and so on. The products have been widely used in the industries of power system, control system,building, civil projects, environmental protection, national defense etc. Our main products have passed the national relative national type tests and got the certificates. Our company has fully passed the ISO9001,CE,ROHS. We sincerely expects to cooperate with all friends from the world. Certifications FAQ Q:How and how long can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality. Then after you send us confirmed files, the samples will be ready for delivery in 7 days. The samples will be sent to you via express and arrive in 5-7 workdays.
Q:How to order our product ?
A: 1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: Can I have a visit to your factory before the order?
A: Welcome! Our factory address: Dongan Industrial Zone,Yueqing City, Wenzhou, Zhejiang, China(Mainland)
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us, or send us by email, we will reply within 24hrs.

---
