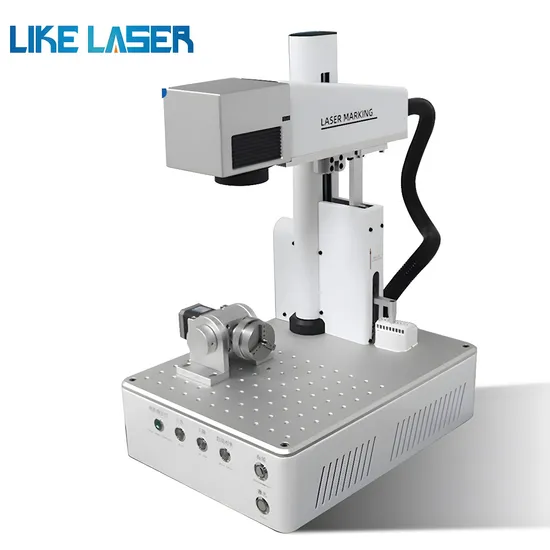

Like-Laser 100W/ Jpt 50W Fiber Laser Marking Machine 30W/ 20W Dog Tag Engraving Machine for Deep Engraving Hot Sell

Product Description

LIKE-LASER 100w/ jpt 50w fiber laser marking machine 30w/ 20w dog tag engraving machine for deep engraving hot sell
Under the condition of ensuring the performance of the machine, adopts the sophisticated and simplified design, which only takes up a very small space. It is suitable for any small studio and very convenient to move.
Application Materials
Fiber laser marking machine can work with most metal marking applications, such as
Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.
Product Parameters

Fiber laser marking machine technical parameters
Laser Type	Fiber laser
Laser Power	20W 30W 50W 70W 100W 200W
Laser Source	MAX / Raycus / IPG / JPT
	1064nm
Marking Area	75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm
Marking Depth	≤1.2mm
Marking Speed	10000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode	Air cooling--Built-in
Temperature of Operation Environment	0ºC~35ºC
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<400W
Communication Interface	USB
Machine Dimension/after package	68*45*64mm
Net Weight/gross weight	170/200kg
Optional	Rotary Device, Moving Table, other customized Automation

Product Description
Our Advantages
Company Profile
HEBEI LIKE LASER,
is established in July 2003 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American certificate and are certified to 9001.
Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc,
more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1. Laser marking machine(Fiber/CO2/UV/Green light)
2.CNC Plasma cutting machine
3. Laser cutting machine
4. CNC knife cutting machine
5. CNC router and so on.
We can also customized non-standard assist equipment as your detailed work requirements.
Packaging & Shipping
FAQ
Please kindly tell us following information to get a quote:
* Which Material you need to marking?
* How about their maximum thickness?
* How about their maximum surface?
