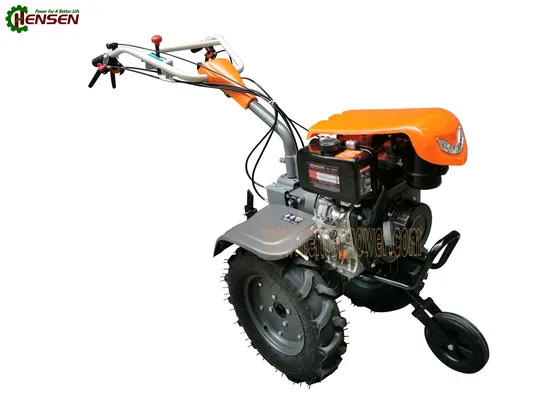

Agricultural Machinery Equipment Diesel Tiller Two-Wheel Tiller 7 Horsepower Hand Tractor

Product Description

Gasoline engine agricultural hand tiller mini tractor 7HP new product multifunctional
Brief Introduction: This advanced gear-driven diesel tiller is powered by a powerful 178-7HP diesel engine. This engine stands out from similar products with its high efficiency and low fuel consumption, providing the whole machine with long-lasting and stable power output.

In order to improve the user experience, we have specially designed a new hood for the new model, which is not only beautiful in appearance, but also has excellent heat dissipation performance to ensure that the engine is always in the best working condition. The LED light group integrated on the top of the hood can provide the operator with a clear and bright field of vision even at night or in low-light environments to ensure the safety of the operation.

In terms of controllability, we have adopted a newly designed handle system, which is more ergonomic, allowing the operator to maintain a comfortable grip even during long-term operation, effectively reducing fatigue.

In terms of transmission system, this machine uses a φ32 gearbox, whose sturdy structure and precise shifting mechanism ensure the stability and efficiency of power transmission. The tillage parts are equipped with 32 carefully designed dryland blades arranged in 2×[4×(2+1+1)]. This unique blade layout not only improves tillage efficiency, but also ensures uniformity and depth of tillage. Each blade is placed separately in the tillage chassis, and appropriate protection measures are taken to avoid scratches with other parts of the machine during transportation or storage, ensuring that the blades are intact.

This machine is equipped with 400-8 tires, whose excellent grip and excellent passability ensure the stable driving of the machine on various complex terrains. The tire color is a combination of matte black and PANTONE yellow 2007C, which is both stylish and eye-catching, not only improving the beauty of the whole machine, but also increasing safety during operation.

In order to extend the service life of the engine, the machine is specially equipped with an oil bath air filter, which effectively blocks impurities and dust in the air and ensures the cleanliness of the air entering the engine.

In order to ensure the safety of the operator, the machine is equipped with a large safety switch. Once an emergency occurs, the operator can quickly cut off the power source to ensure personal safety. In addition, this machine also offers a variety of optional configurations, including 5.00-12 tires (+$16.00), 6.00-12 tires (+$24.00), and 18AH battery electric start (+$48.00), allowing you to choose the configuration that best suits your needs.
Detailed Photos

Our Advantage:
The field management machine is a general term for micro-tillers and trenching cultivators. It is a kind of cultivator and raking machine (equipment) developed and designed based on the characteristics of small hilly fields, large relative height difference and narrow greenhouse space. It has the advantages of small farming machinery at home and abroad, low fuel consumption, high productivity, small size, light weight, flexible operation, convenient transfer, and easy maintenance. The need for farming projects.
Implements
A full series of implements, small and big, are developed for coupling our power tillers for different purposes of customers. This could help farmers and cultivators to realize all kinds of purposes, such as ditching, potato digging, orchard management, weeding, agricultural tools or products transportation etc.
Packaging & Shipping

Packing
We mainly have two patterns of packing, the one is carton + steel frame fixing, the other is plywood box packing. We would like to recommend our customers plywood box packing, because of the following advantages of plywood packing:
1. Solid and reliable;
2. Easy for unloading;
3. Nicer looking outside;
4. Won't transform and damage products inside.
After Sales Service

After-sale service
We are going to offer following after-sale service after the goods are delivered:
1. Prepare required documents for our customers, including bill of lading, certificate of origin, commercial invoice, and packing list.
2. Contact and communicate with shipping agents if modifications of bill of lading is required by our customers.
3. Send the original documents to our customers by air express once we make all of them ready and balance payments are received.
4. Give professional suggestions regarding using, maintaining of the products purchased by our customers, and sometimes we need to guide the users for the first time use.
5. Solve the problems or make constructional suggestions for the problems encounter them by our customers during their use.
6. Receive claims of quality failures from our customers, and communicate with our team of engineers and identify whether they are production defects or not.
7. Send replacement products or spare parts to our customers for the production defects products claimed to us.

Certifications

Quality certification
Different countries have different requirement for minimum quality standards. If an item meets the minimum quality standard, we say it is qualified, otherwise it is unqualified. How to make qualified products? We use ISO quality management, and quality standard we set up according to customers' need. We have received CE certificates since the very beginning of our export business. CE does not only act as the quality standard of customers from European countries, but also plays a key role when we carry out our production activities. If not specified, we will produce our products based on CE quality standards.

Product Parameters

Technical Specifications:

Description	Model	HS1050G
Engine Specifications	Engine type	HS170F(7.5HP)
	cc	210
	Engine power hp(kW)	7(4.5)
	Volume of Tank(l)	3.6
	Starting system	Starting system
Tiller Specifications	Tilling width(mm)	800-1000
	Tilling depth(mm)	100-300
	Gears	-1,0,2
	Drive type	Gear drive
Others	Tyre size	4.00-8
	Blades type	4 pcs 4 groups dry land blades with side discs
Packing Details	Packing type	Plywood box
	Dimensions	840×450×660
	20FT/40HQ Loading Qty.	105/280
More Information	Period	12 months
	Production time	35 days
	Minimum purchase qty	10 pieces/ item
	Color	According to your requirement
	Field of usage	Farmland

Company Profile

Company information
1.13 years of manufacturing experience in the field of general purposes machinery and agricultural machinery;
2. Strict quality control procedures to ensure the quality of each machine;
3. Factory direct selling at competitive prices;
4. OEM service is available;
5. Fast and efficient delivery service;
6. 7×24 online professional after sales service;
7. One year warranty guaranty.

---
