High Precision Multifunctional CNC Turning-Milling Machine CNC Lathe Turning Milling Machine

Product Description

High Precision Multifunctional CNC Turning-milling Machine CNC Lathe Turning Milling Machine
Product Parameters

Maximum turn diameter of bed body(mm)	Φ400mm
Maximum turn diameter on pallet(mm)	Φ200mm
Maximum machining length(mm)	300mm
X axis maximum stroke(mm)	400mm
Z axis maximum stroke(mm)	500mm
X-axis is moving fast(mm/min)	20m/min
Z-axis is moving fast(mm/min)	20m/min
X axis repeat positioning accuracy(mm)	0.005mm
Z-axis repeat positioning accuracy(mm)	0.008mm
Diameter of spindle through hole(mm)	Φ48mm
Spindle end form	A2-5
Diameter of drawing hole(mm)	Φ40mm
Main motor power(KW)	5.5kw
Maximum spindle speed(r/min)	4000r/min
Rest	Four station electric tool holder (eight station servo tool holder)
Knife party size(mm)	20*20mm
Overall size (LxWxH)(mm)	1900*1700*1800mm
Machine net weight(kg)	2500kg

Product Description

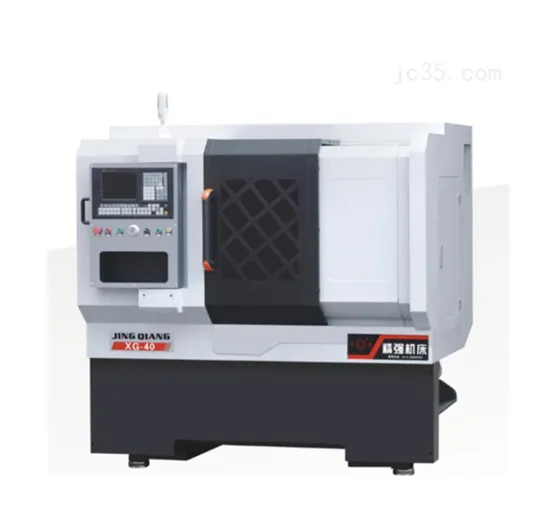

The XG-40 turning and milling composite lathe integrates various processes such as turning, milling, drilling, and tapping, and is completed in one clamping process. This not only improves the machining accuracy of the parts, but also reduces waiting and clamping time between processes, greatly improving machining efficiency and winning greater profit margins for users
Characteristics X-direction ultra long travel provides more space for tool loading. It can be equipped with a large capacity 8-station turret and 3 positive and 3 side ER20 power heads, combined with the main spindle C-axis and hydraulic bidirectional disc brake function, to achieve multi tool processing of complex rotating bodies, suitable for processing some planar features, hole features, groove features, etc. on the outer circumference and end face of the rotating body. Integrating processes such as turning, milling, drilling, and tapping into one clamping process not only improves the machining accuracy of the parts, but also reduces waiting and clamping time between processes, greatly improving machining efficiency and winning greater profit margins for users.
Company Profile
Taizhou Chuzhou Electromechanical Equipment Co., Ltd. which is located in yuhuan city, Zhejiang Province . The company is a professional production, sales of brass valve sanitary ware machinery and equipment group company. We have 5 factories, mainly producing machines for copper valves sanitary ware products : automatic hot forging Trimming Machine , shot blasting machine, automatic polishing machine, automatic CNC machine tool, automatic assembly machine, whole line processing and testing equipment . We have a group of professional engineers in charge of technology, manufacture, installation and testing, so we can guarantee the good performance of our machines. We can provide customers with full service and technical consultation according to their different requirements . Cosmos company would like to offer the best machines, and build ourselves as the bridge and window for both overseas and domestic enterprises and customers. Products are exported to Russia, India, Iran, Turkey, United Arab Emirates, Vietnam, Uzbekistan, Saudi Arabia, Syria, Jordan, Indonesia, Singapore, Thailand, Pakistan, South Africa, Egypt, Nigeria, Kenya and other countries.
welcome to build business relations, cooperate and develop together with us. Please feel free to contact us for details.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: What is the delivery time?
A2: 20-40 working day, based on factory's production order conditions.
Q3: How to installation machine?
A3: We supply overseas service, engineer can go to your place guide installation and debugging.
Q4: What size machine suit for us?
A4: We design machine following your request, usually based on your workpiece size, weight and efficiency.
Q5: How to control the quality?
A5: One year warranty,and 10 teams QC to check every part from drawing to machine finished.

---
