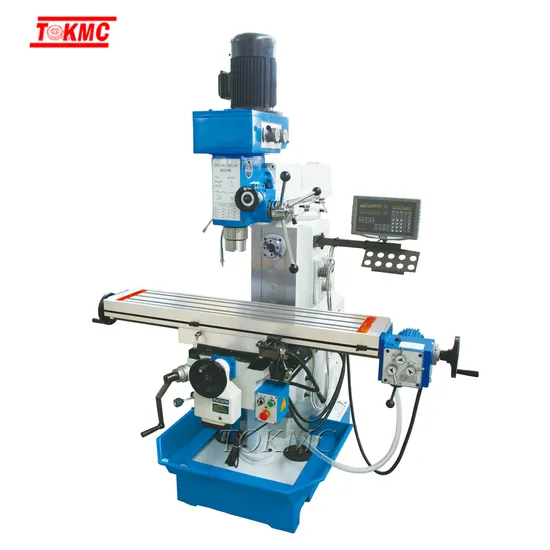

Xz6350c Three Axes Auto Feed Central Panel Milling Machine (CE standard)

US$3,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XZ6350C
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE
Condition
New
Function
Milling ,Drilling ,Cutting,Tapping
Spindle Motor
2.2kw
Type Machine
Milling & Drilling Machine
Transport Package
1660X1340X2130mm
Specification
1250/1350kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month

Product Description

xz6350C three axes auto feed central panel milling machine
Specification X6350C XZ6350A
Table size 1200x280mm 1120x260 mm
Table travel 600x260 mm 600x270m
Distance from spindle nose to table surface 100-400mm 100-400mm
Max.drilling dia 30 mm 30 mm
Max.end milling width 100mm 100mm
Max.vertical milling dia. 25mm 25mm
Max. Tapping dia. M16 M16
Spindle speed range 115-1750 rpm V
40-1300 rpm H		 115-1750 rpm V
40-1300 rpm H
Spindle travel 120mm 120mm
Overall dimension 1660x1340x2130mm 1655x1450x2150 mm
Spindle motor power 0.85/1.5 kw(V) 2.2kw (H) 0.85/1.5 kw(V) 2.2kw (H)
Weight kgs 1250/1350kgs 1500 kgs
