Model
| SIP-578WDC /SIP-578WDC POE/SIP-678WDC/SIP-678WDC POE
|
Power supply
| DC12—24V / POE
|
Rated power
| 10W/20W
|
Constant Impedance
| 8Ω
|
Sensitivity
| 89±3dB
|
Frequency Response:
| 80-20000Hz
|
Decoding
| OPUS 48kHz,mp3 44.1kHz,G.722 ADPCM 16Khz, G.711 PCMU 8kHz ,G.711 PCMA 8kHZ
|
Network Protocol
| SIP,ONIF,HTTP,IPV4,DHCP,RTSP,RTP,TRCP,TCP,UDP,ARP,FTP,TFTP,NFS,NTP
|
Network interface
| 10/100 Base-TX, RJ45
|
VoIP
| Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server,IPv4(IPv6 future) Support codecs:OPUS,G711U,G711A ,GSM,MP3, WAV
|
Loudspeaker unite size
| 5.25’’coaxial horn with back cover
|
Materials
| ABS
|
Package Dimensions (W*D*H mm)
| 215*215*115
|

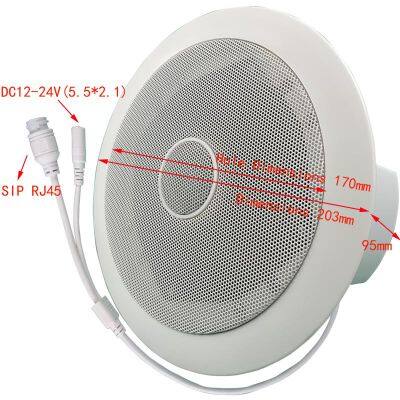

Dimension
| Φ203*95mm
|
Hole dimension
| Φ170mm
|
Gross Weight
| 1kg
|
Net Weight
| 0.9kg
|
