Manufacturer of Paper Cup Palte Machine Fully Automatic

US$7,500.00-9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JBZ-OSZ12
Speed
65-75PCS/Min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE, ISO
Customized
Customized
Condition
New
Capacity
65-75PCS/Min
Color
Grey
Cup Size
3-12oz
Raw Material
Single and Double PE Coated
Power
6kw
Voltage
220/380V
Computerized
Yes
Weight
1400kg
Overall Size
2000*900*1600mm
Transport Package
Woodencase
Specification
SGS
Trademark
chinaworld
Origin
China
HS Code
84413090
Production Capacity
300 Sets

Product Description


Paper Cup Making Machine Price JBZ-OCS12

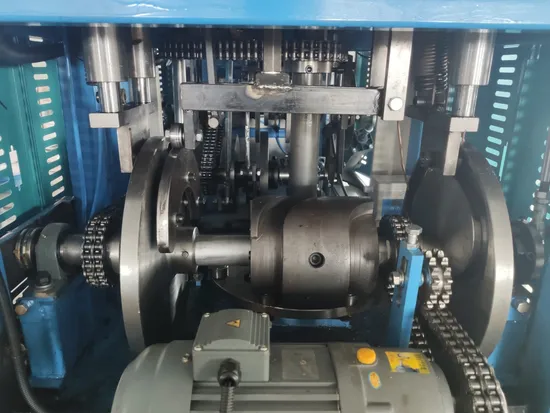

Detailed Photos
Product Description JBZ-OCS12 Paper Cup Making Machine is a multi station high-speed automatic machine which producing both single and double PE coated drink cups,ice cream cups through continuous process of automatic paper feeding,sealing,oil injection,bottom cutting,heating,knurling,curling and stacking.The machine adopting hot air system,full-automatic failure warning,counting,detection,stopping,etc.

Product Parameters
Model JBZ-OCS12 Paper Cup Making Machine
Cup Side Welding: Heat Sealing/Ultrasonic heater
Paper Cup Size 3 ~12OZ (30ml~330ml Mould exchangeable) Max Cup height to 120 MM

Raw Material

One or Two side PE coated Paper (Popular for Hot and Cold drink Cups)
Suitable Paper Weight 140-350gsm
Speed 65-75 pcs/min
Total Power 6 KW
Power Source 50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.
N.W 1400Kg
Gross Weight 1500Kg
Machine Size(L * W * H) 2000*900*1600mm
Package Size(L * W * H) 2100*1000*1700mm

Working Air Source:
Air pressure:0.4Mpa;
Air Out-put:0.6m³/minute
Need to buy Air Compressor(by user)

Cup Bottom Heating:
1side PE paper by heater knurling;
2side PE paper by cool device (circle water) knurling

Cup Bottom Knurling:
Heater Knurling (if use single PE coated paper)
Packing Seaworthy Wooden Case
