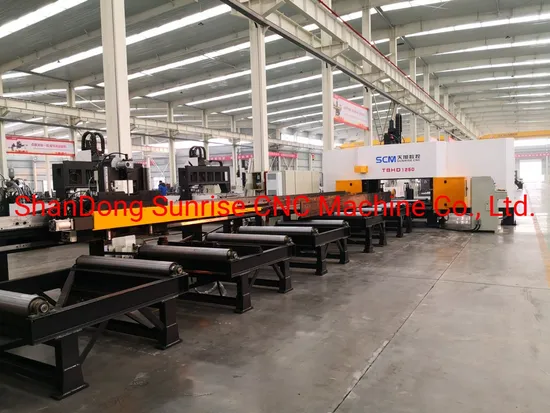

TBHD1000 CNC High Speed Drilling Machine for Beams

Product Description

Application:
This machine is mainly used for processing holes on H-beam, channel beam with high speed, the positioning, feeding of three spindles are all driven by servo motor. It adopts spindle servo motor, controls by CNC system, and in-feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in construction, bridge and other industries.
Specifications:

Model	TBHD1250
Work piece size	H beam	Web (mm)		150~1000
		Flange (mm)		75~500
Spindle	Quantity			3
	Spindle taper			BT40
	Spindle rotation speed(r/min)			0~3000
	Feeding speed(mm/min)			0~5000
	Max. hole diameter(mm)			φ40
Control system	CNC system			Siemens PLC
	CNC axes quantity			7+3
Hydraulic system	Max. Hydraulic Pressure (MPa)			8
	Motor power(kW)			5.5
Cooling system	No. of nozzle			3
	Pressure of compressed air (Mpa)			0.6
	Cooling way			Internal cooling & external cooling
Tool Magazine(optional)	Tool Magazine Quantity			3
	Tools quantity for each Magazine			4 pieces
Marking unit(optional)	No. of Characters			36 characters
	Characters Size			Φ10 mm
Overall dimension(L×W×H)(mm)				About 6000×2100×3500
Main Machine weight (Kg)				About 8500

Packing & Delivery
Packing Details : Packing, this model need 1*40HQ&1*40OT;
Delivery Details : 30-60 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Factory
Aftersale Service
India and some other countries could provide to door service. For those we cannot go to factory at site, we will provide full details installation guidance and give remote support by internet (Wechat, whatsapp, zoom, telephone, email, teamviewer).
Our Certifications
SUNRISE is focus on quality and company's image. We win market with good quality and service. The company has already passed International Quality Management System ISO9001:2015 certification for many years and also got the CE certificate, smoothly got the title of High and New Tech Enterprises. And has more than ten own intellectual property rights and patent technology. We have own import and export right. Our products exported to Russia, South Asia, South east Asia, Middle East, South America, Africa, Australia, Eastern Europe etc.
Quality Make Brand, Honesty Win Market!
Innovation Promote Development, Harmony Converage Talents.
Thanks For All Customers Believe And Choose Sunrise CNC.

---
