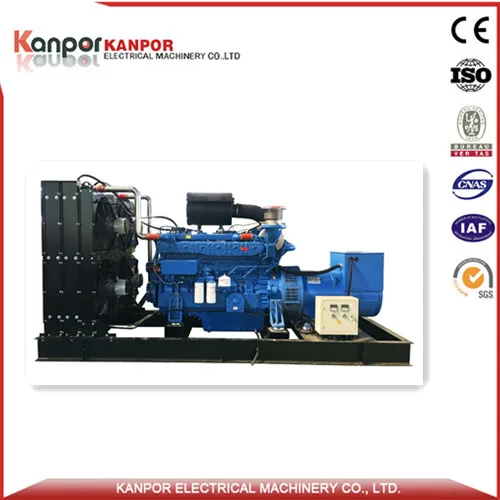

Kanpor 400kw 500kVA LPG (Liquefied Petroleum Gas) Generator

Product Description

1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION

Model	Prime output (kw/kva)	Standby output (kw/kva)	Engine model	Alternator model
KP625-LPG	400/500	500/625	YC6C	FD5LS-4
Genset Data	Size & Weight (Open type)		3700*2400*2600mm (4900kgs)
	Frequency		60Hz
	Standard Features		Radiator 50OC max,fans are driven by belt, with safety guard/Ripple flex exhaust pipe, exhaust siphone, flange, muffler
	Voltage		220/110V
	Phase & Wires		3phase, 4wires
	Power Factor		COSΦ=0.8 (lagging)
	Battery		24V
	Fuel Tank		Not included
	Breaker		Schneider
Engine Data	Brand & Model		Yuchai YC6C
	Cycle		4 stroke
	Engine Standby Power (kwm)		320
	Air Intake Way		Turbo
	Governor		Electronic
	Cylinder		6
	Bore*Stroke (mm)		400*210
	Displacement (L)		39.58
	Fuel Consumption		1121.49L/min against continous power
	Compression Ratio		9:1
	Combustion System		Direct injection
	Speed		1800RPM
	Cooling Way		Water cooled
Alternator Data	Brand & Model		FARADAY FD5LS-4
	Alternator Standby Power		584KW
	Frequency & Speed		60Hz, 1800RPM
	Phase & Voltage		3 phases 4 wires & 220/127V
	System		Brushless AC Synchronous, Single bearing
	Insulation & Protection		H, IP23
	Voltage Regulator		Standard AVR
Control System	Brand & Model		DEIF AGC150
	Two language interface: Chinese/English
	Start or Stop Generator set manually / automatically; Open controller output can be defined as pre-heat/idle output.
	High Coolant temperature protection; Low oil pressure protection. Over speed protection
	Over load protection; Generator over/under frequency protection: Generator over/under/unbalance voltage protection

3. PRODUCT FEATURES (1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice

---
