US$7,000.00-9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Certification
CE, RoHS, ISO 9001
T/Slot/Width/Distance
3/14/70
Table Loading Capacity
400
Table Longitudinal Travel
1000
Table Vertical Travel
440
Transport Package
Wood Case
Production Capacity
200PCS/Month
Product Description

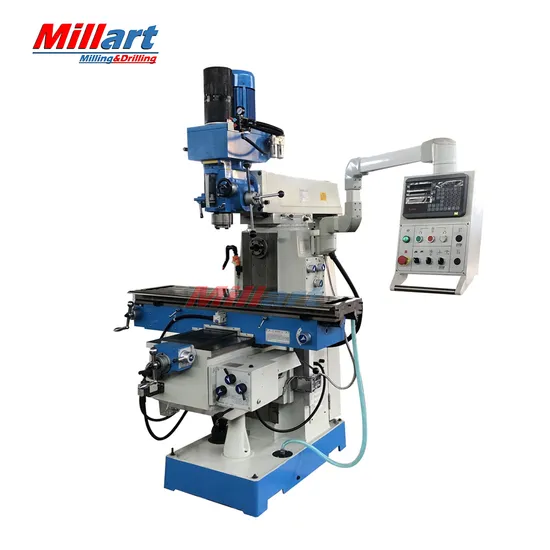

X6332Z Universal Drilling Milling Machine Price
Feature:
1. Flexible, multi-function of milling, drilling and tapping .
2. Easy to operate, convenient maintenance
3. High speed milling head , high precision, swivel 90°, flexible processing.
4. Cast iron after artificial aging treatment,high precision,long service life
5. Hardening treatment.
6. Equipped with manual lubricating device, the lubrication on the lead screw and guideway
7. X, Y, Z-axis auto-feeding.
Technical Parameter :
| Model | UNIT | ZX6332Z |
| Table size | MM | 1370x320 |
| T slot no./width/distance | | 3/14/70 |
| Table loading capacity | kg | 400 |
| Table Longitudinal travel | mm | 1000 |
| Table Cross travel | mm | 380 |
| Table Vertical travel | mm | 440 |
| Spindle taper | | ISO40 (V/H) |
| Spindle sleeve stroke | mm | 120 |
| Spindle speed /step -- Vertical | rpm | 90-2000/8 steps |
| -- Horizontal | rpm | 40-1300/12steps |
| Vertical spindle axis to column surface | mm | 200-800 |
| Vertical spindle nose to table surface | mm | 200-640 |
| Horizontal spindle axis to table surface | mm | 0-440 |
| Horizontal spindle axis to arm bottom | mm | 200 |
| Ram travel | mm | 600 |
| Longitudinal feed rate | mm/min | 22-555/8steps |
| Longitudinal rapid moving | mm/min | 760 |
| Cross feed rate | mm/min | 22-555/8steps |
| Cross rapid moving | mm/min | 760 |
| Vertical feed rate | mm/min | 7-150/8steps |
| Rapid Traverse vertical | mm/min | 210 |
| Main motor | kw | 2.2(V) 3.0(H) |
| Feed motor | kw | 1.1 |
| Coolant motor | kw | 0.04 |
| Packing dimensions | mm | 1400x1600x2250 |
| Net/Gross weight | kg | 1850/1950 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X,Y,Z axis auto power feed |
| Mill arbors |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories
| 3 axis DRO |
| Air draw bar |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Rotary table HV10 |
| Dividing head F11-160A |
| Machine vice 160mm |
>>
