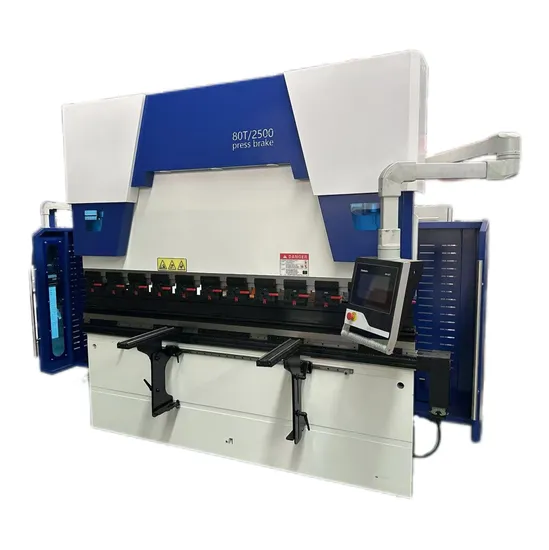

CNC New Automatic Hydraulic Press Brake Pricebend for Bending Ss Ms 80t 220t 2500mm

Product Description

CNC New Automatic Hydraulic press brake Pricebend for bending ss ms 80t 220t 2500mm Product ApplicationThe Whole Structure of Press Brake:
1) Totally European design, streamlined looking
Taking off inner-stress of welded parts by tempering, good stability
Remove rust with sand-blast and coated with anti-rust paint
Adopt Spanish pentahedron machine center, once clamping can finish all working surfaces which will
guarantee dimension precision and position precision.
The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.
Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.
Supplying three front sheet supports , Finish of Nippon Polyurethane paint.
2) Ram structure:
Upper stroke design for bending, low noise, stable operating situation , Parallel tolerance of Y1 and Y2 is 0.01mm
Y1,Y2 can be programmed separately can work under non-balance load, can bend cone-shape work piece
At bottom dead center a pressure-keeping time is offered, and can be programmed to assure precision of all kinds of work piece. Can move the ram up slowly, which allows the operator to control work piece conveniently Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest!
3)Hydraulic system:
Close loop electro-hydraulic synchronized servo-control system, the most advanced
Hydraulic system is from Rexroth, Germany, a full loop electric-hydraulic proportional servo control, Sumitomo oil pump, Japan.
Imported linear optical reader, guiding system, positioning system and hydraulic balancing system with
high precision, which all can permit the processing work piece of full length or with eccentric.
An outfit with "C" is at throat, as deformation compensation on throat, directly measuring the distance
between upper tool and low die, assuring the precision of work piece.
All seals in cylinder is imported, the most famous brand, good quality and high performance
Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level
can be read or seen directly
Being able to work under rated load continuously, stable working and high precision
4) CNC Back gauge:
Close loop electro-hydraulic synchronized servo-control system,the most advanced
Good for work piece needing multiple steps of bending with high precision requirement.
X is moved with ball screw,guided by linear guide,and driven by digital AC servo-motor.
Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
Two fingers are moving alone swallow guide,operate easily with high precision
Particular finger-stop design,enlarge the range of back gauge.
5) Electrical system, SCHNElDER Electrical:
Electrical components are imported or from Sino-foreign joint Venture,in accordance with international
standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
Having a movable single-hand pedal switch with emergency stop,easy to operate.
6) Crowning compensation, To avoid right conditions:
Low worktable has an automatic crowning compensation uint; compensation amount is automatically set
up by CNC system, with guarantee a same bending angel on full length.
The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.
Certifications

Items	parameters
Nominal force	800KN
Bending length	2500mm
Distance between	2000mm
Throat	340mm
Stroke	200 mm
Max open height	470 mm
X,Y axis travel	repeat positioning accuracy: ±0.01mm
Approach speed	160 mm/s
Working speed	8mm/s
Backing speed	120 mm/s
Control axis	Y1,Y2,X,,R+V
Dimension	3300x1800x2550mm
Electrics	380V/50Hz/3Ph
Motor	11

Detailed Photos
Company ProfileWHAT WE STAND FOR CUTTING EDGE TECHNOLOGY SINCE 2008Jiangsu Prince CNC Machinery Co.,LTD is located in the center of China's machine tool industry, Mingjue industrial Park , Shiqiu Town,Lishui Zone, Nanjing We have more than 30 years manufacturing history with 540 technicians and 60000 sqm factory building sizes.
Our company specializes in Table type CNC Fiber Lasercutting machine, exchangeable table cnc fiber lasercutting machine, cnc servo press brake bending machinepress brake, shearing machine ,ironworker, punchingmachine , HVAC ducting machine and other metalforming forging equipment development and sales, ourproduct positioning in the middle-top quality class. wecommit a modern enterprise managementmethods,committed management and meticulousmanagement and zero defect operation. Based on thequality of the product management its excellent quality,innovative design, reasonable price, and improve after-sales service to win the majority of Chineseand foreiancustomers praise, Prince sheet metal processingequipment, Widely used in automobile manufacturing,communications, computers and so on.
Pre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Best Quality machine
CNC benidng machine
press brake with Good Quality
After-Sales Service* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Efficiency Bending machine
CNC benidng machine
press brake with Good Quality
Q1. Trade company or manufacturer?
A: We manufacturer
Q2. Is it easy to operate for the new user ?
A: very easy
Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours
Q5: Is it harmful to human body when in operation ?
A: no, very safe.

---
