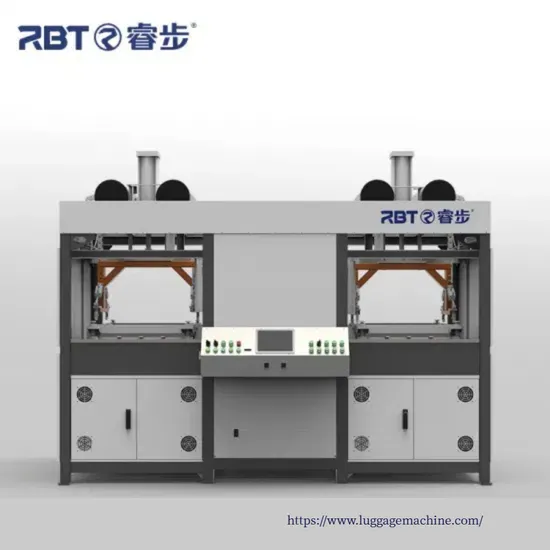

Rbt High Efficiency and High Precision Bag Blister Machine with Two Station

Product Description

Product feature
(1) Using automatic constant temperature control module, precise control of heating temperature, high efficiency and energy saving
(2) Servo control, smooth and stable operation
(3) Microcomputer programmable controller (PLC) control, man-machine interface operation is convenient; It can be seamlessly connected with the automatic loading and unloading of the blister machine
(4) The use of the most advanced vacuum molding technology to ensure consistent and accurate molding of materials, resulting in a high-quality final product.
Parameters(for reference)

RB-A8-20/24/28 Luggage vacuum forming machine Model RB-A8-20 RB-A8-24 RB-A8-28 Sheet Material and Thickness ABS,PC etc;1-4mm Input power 380v±10%,50HZ Vacuum capacity (M³) 0.2M³ 0.3M³ 0.35M³ Vacuum pressure (MPA) -0.07 ~ -0.09MPA Air pressure (MPA) 0.65-0.75MPA Air consumption (L / MIN) 550L/MIN 650L/MIN 800L/MIN Total machine power (KW) 39.5KW 49KW 55KW Working power (KW) 35KW 44KW 50KW Power copper wire model 16mm2 16mm2 25mm2 ABSABS case max. output (pcs / H) 110 105 90 PCPC case max. output (pcs / H) 85 80 70 Machine Type 20inch 24inch 28inch Maximum mold size (L*W*H ) 600*420*200MM 690*510*200MM 780*600*200MM Maximum sheet size (L*W*H ) 730*550MM 830*650MM 930*750MM Maximum frame size (L*W) 680*500MM 780*600MM 880*700MM Machine weight (T) 2.0T 2.0T 2.1T Overall dimensions(L*W*H ) 3000*1700*2450MM 3300*1700*2450MM 3600*1850*2500MM

Cooperation customers:
Company profile:
Company show:
packing&delivery:
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.

---
